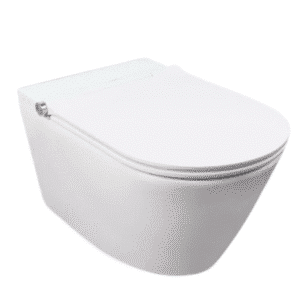

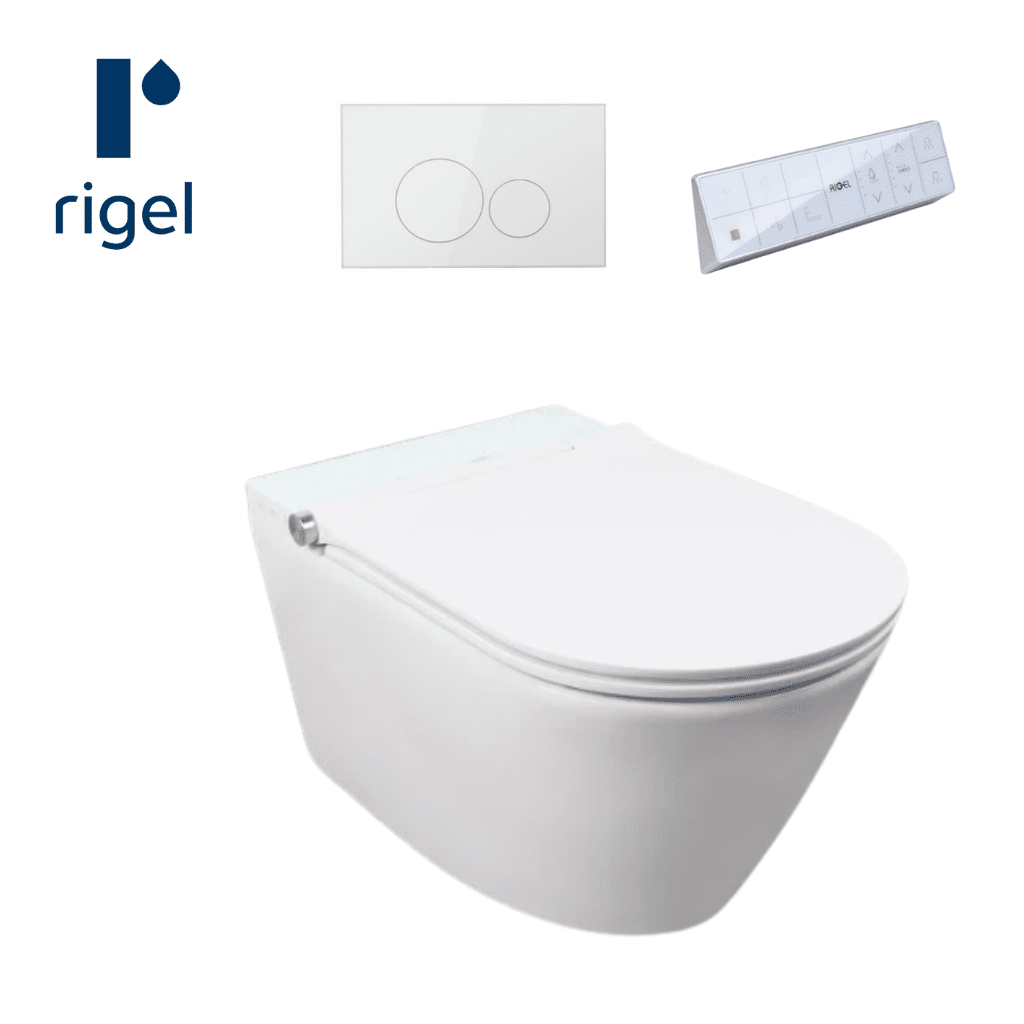

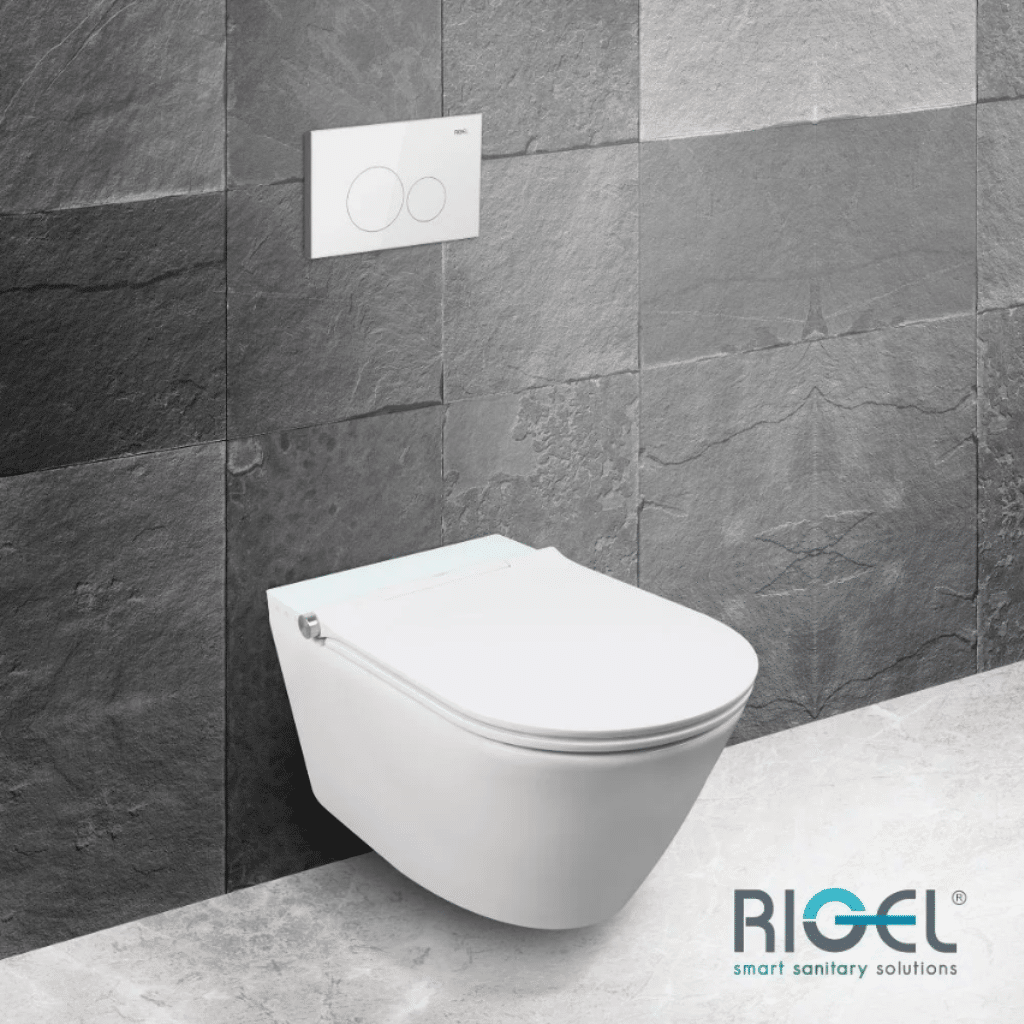

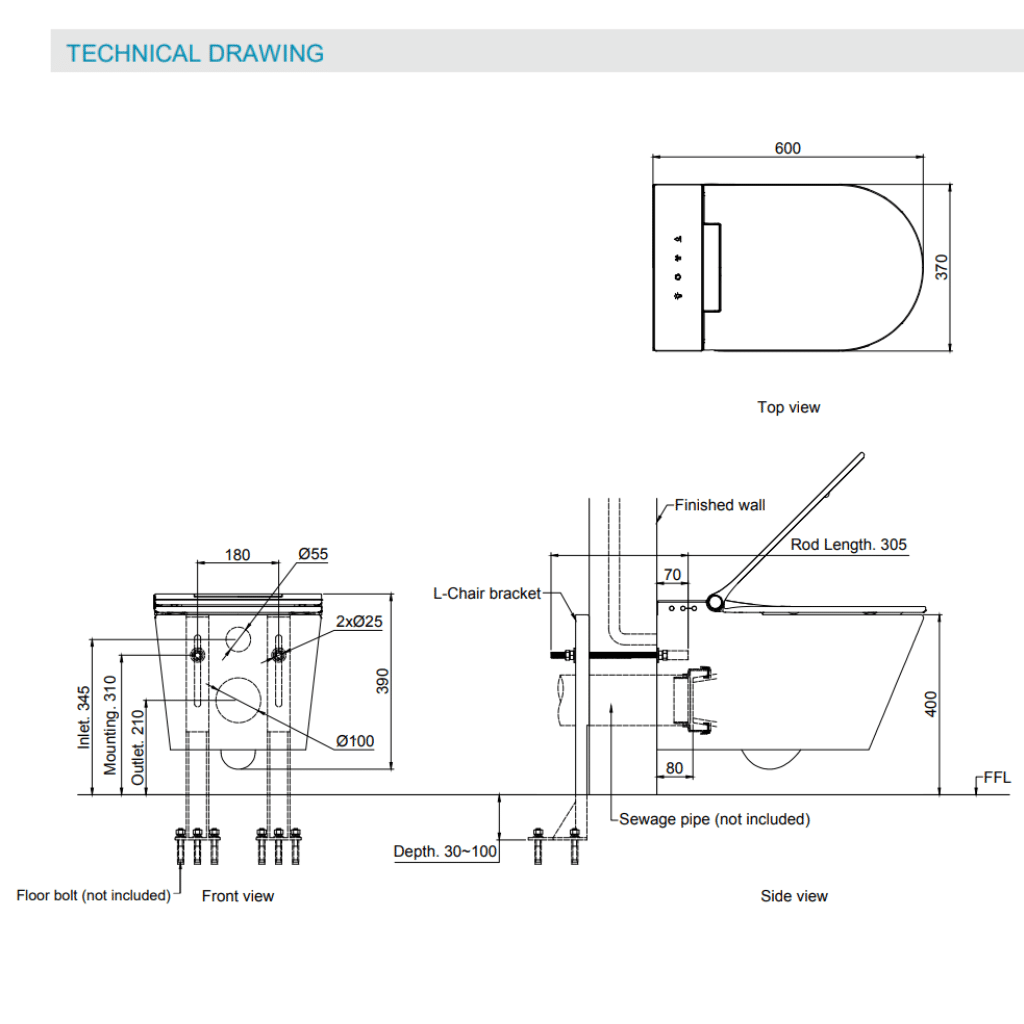

Wall-Hung Water Closet Integrated Smart Toilet Seat

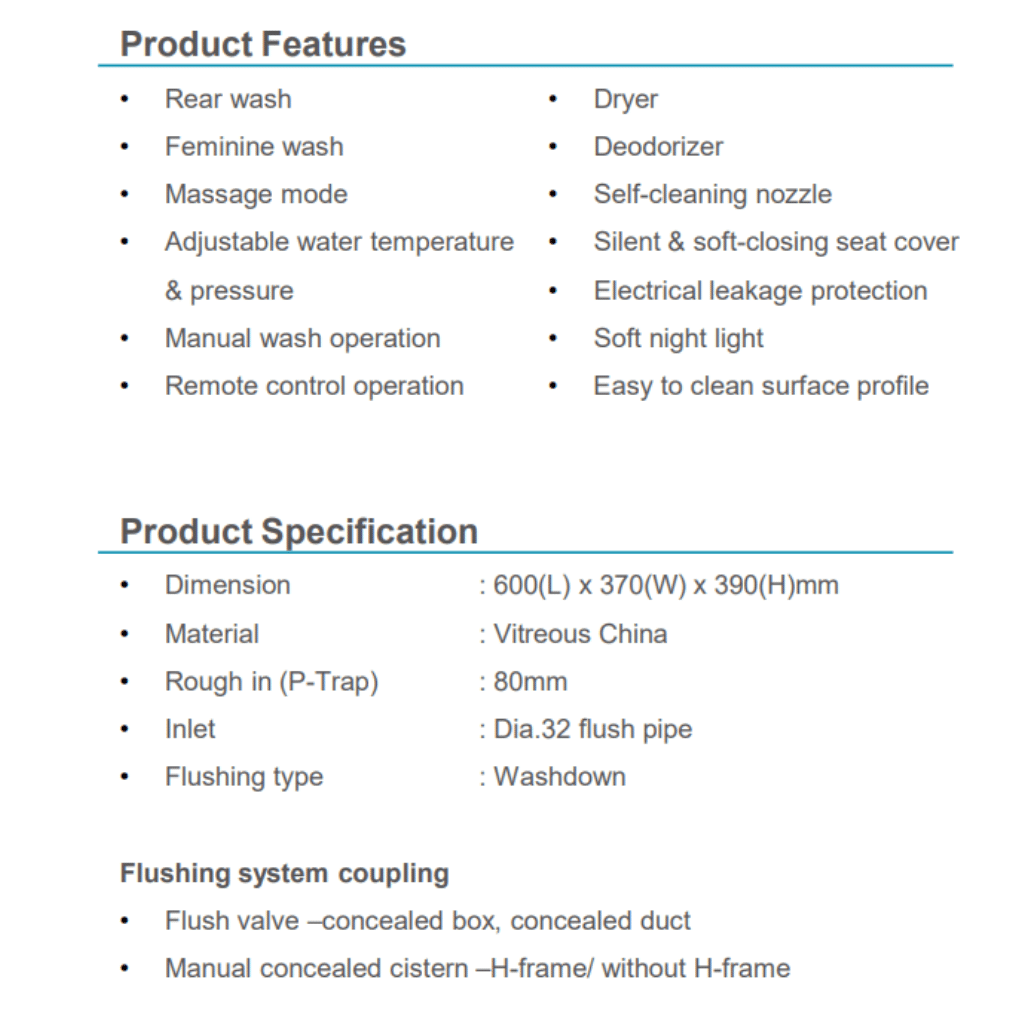

Product Features
• Rear wash
• Feminine wash
• Massage mode
• Adjustable water temperature & pressure
• Manual wash operation
• Remote control operation
• Dryer
• Deodorizer
• Self-cleaning nozzle
• Silent & soft-closing seat cover
• Electrical leakage protection
• Soft night light
• Easy to clean surface profile

Product Specification

• Dimension : 600(L) x 370(W) x 390(H)mm
• Material : Vitreous China
• Rough in (P-Trap) : 80mm
• Inlet : Dia.32 flush pipe
• Flushing type : Washdown

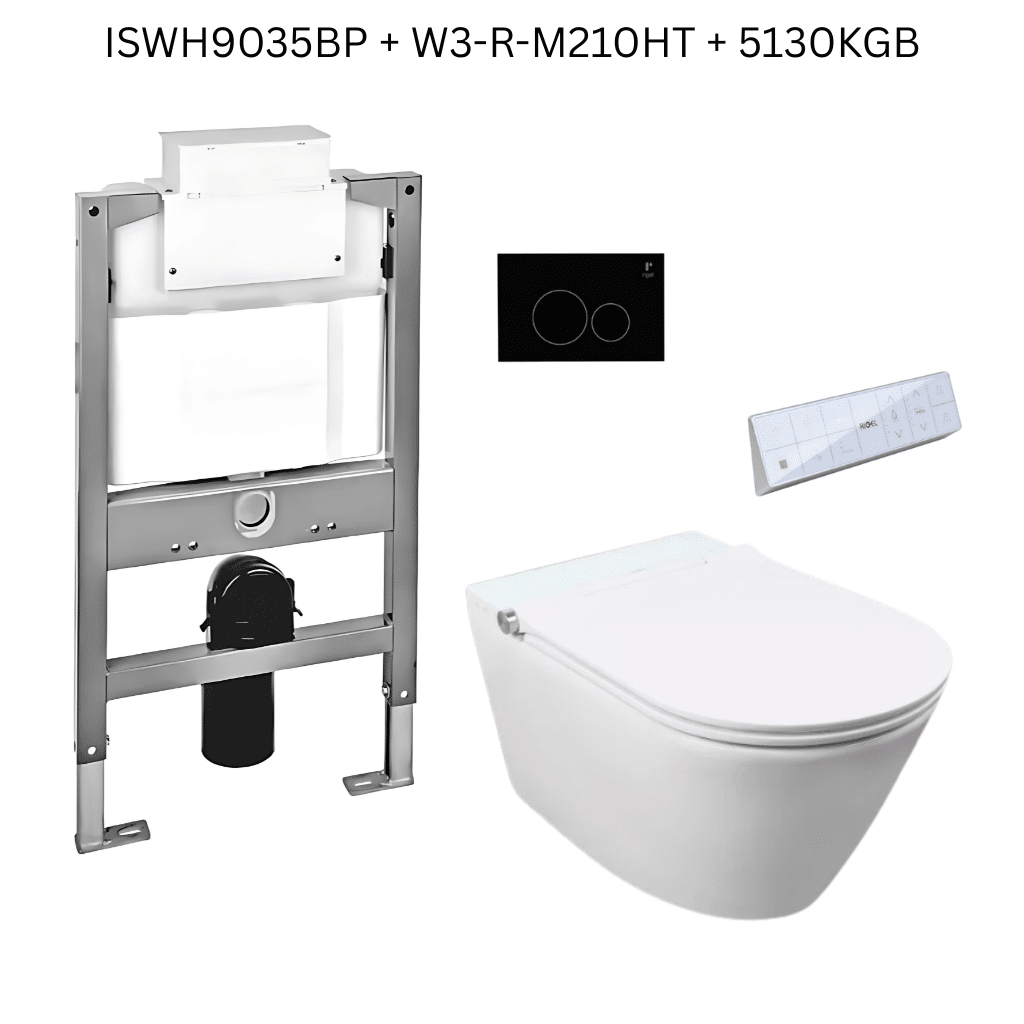

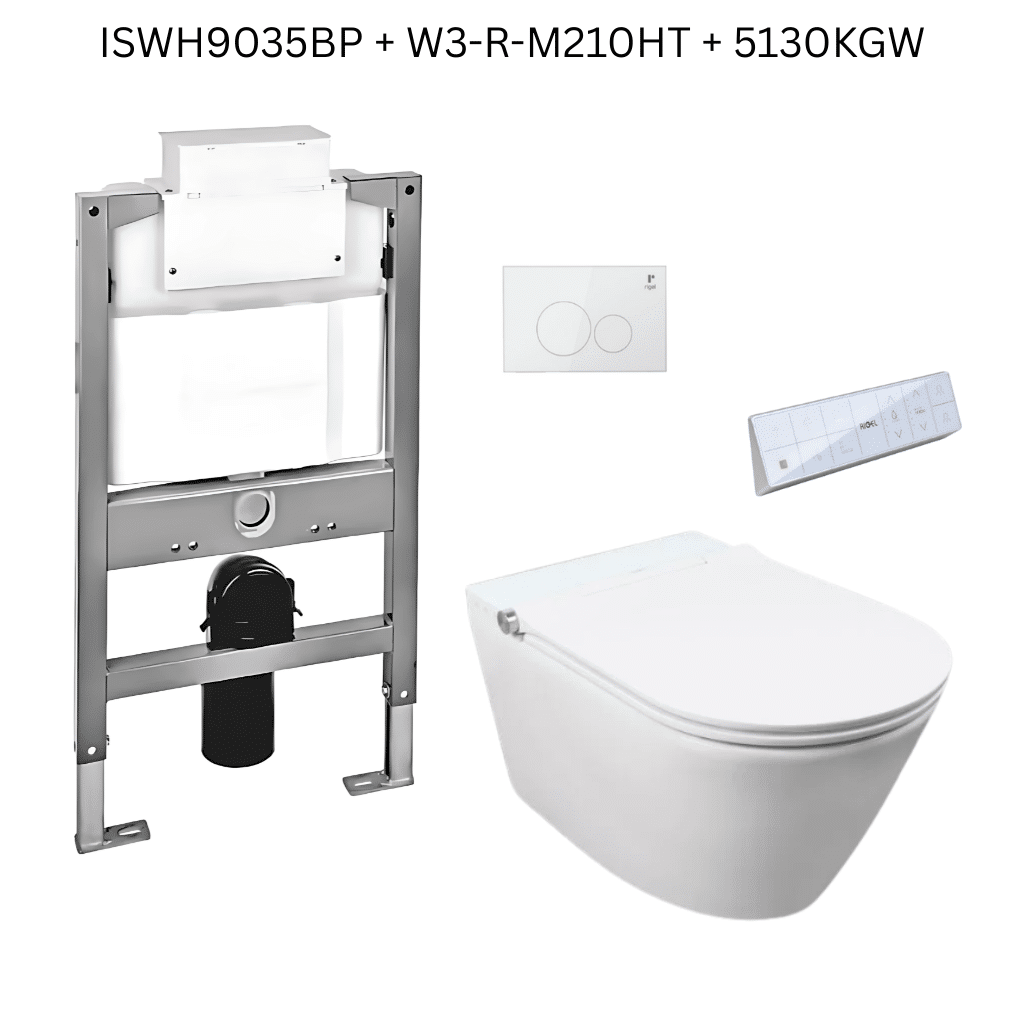

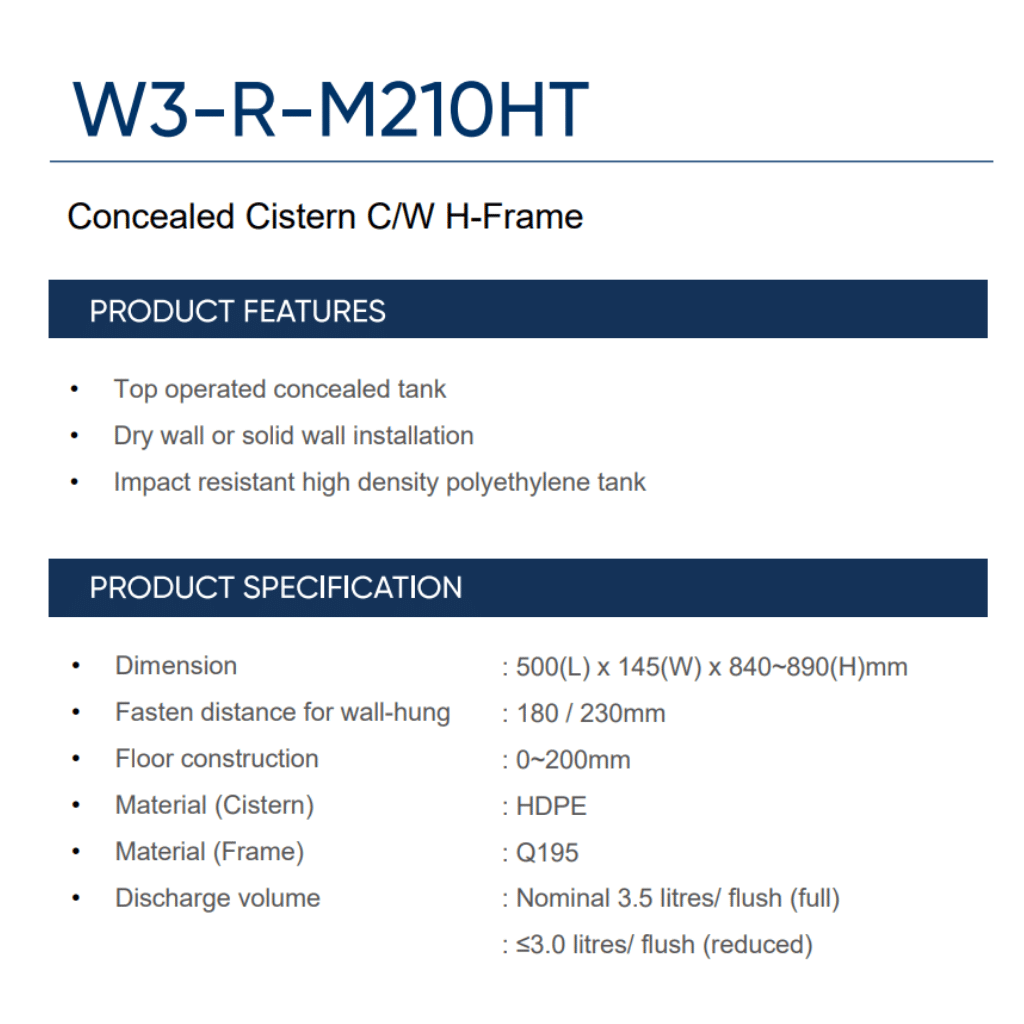

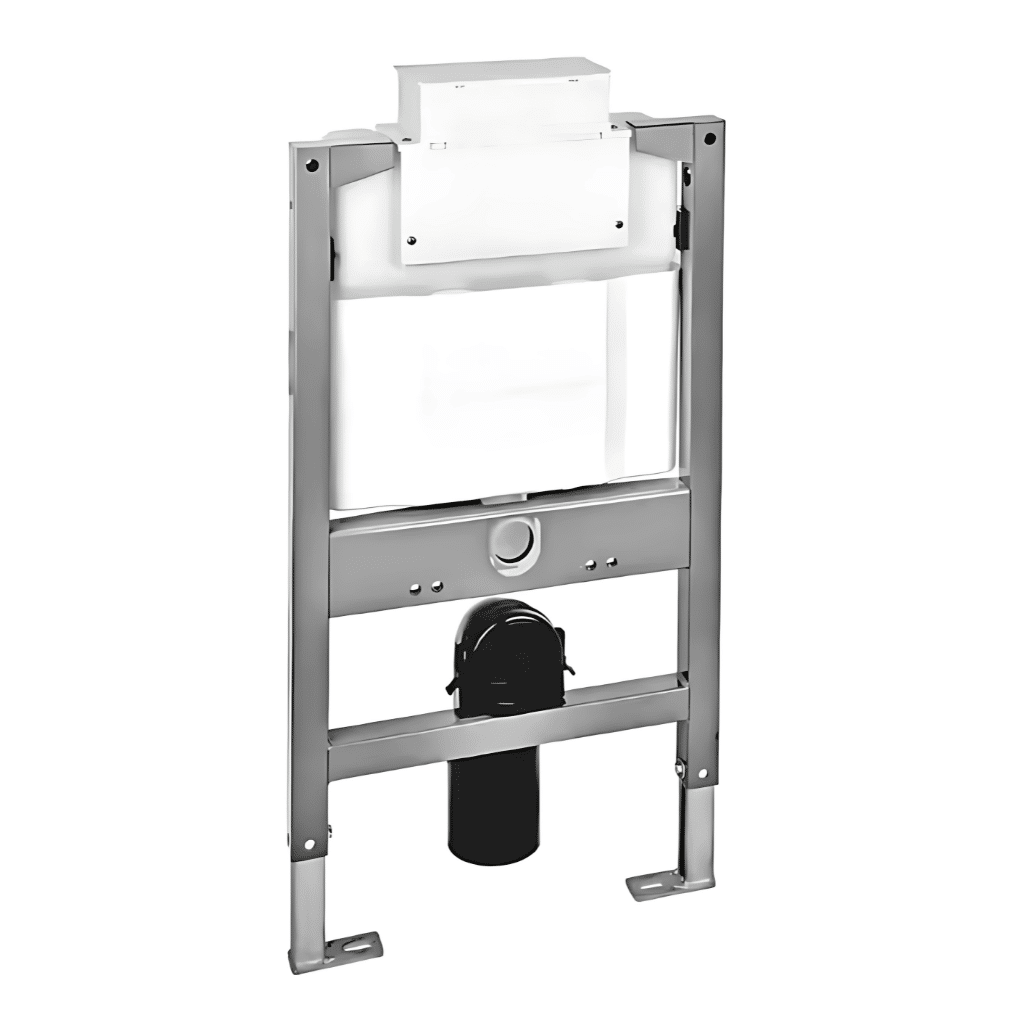

Concealed Cistern C/W H-Frame

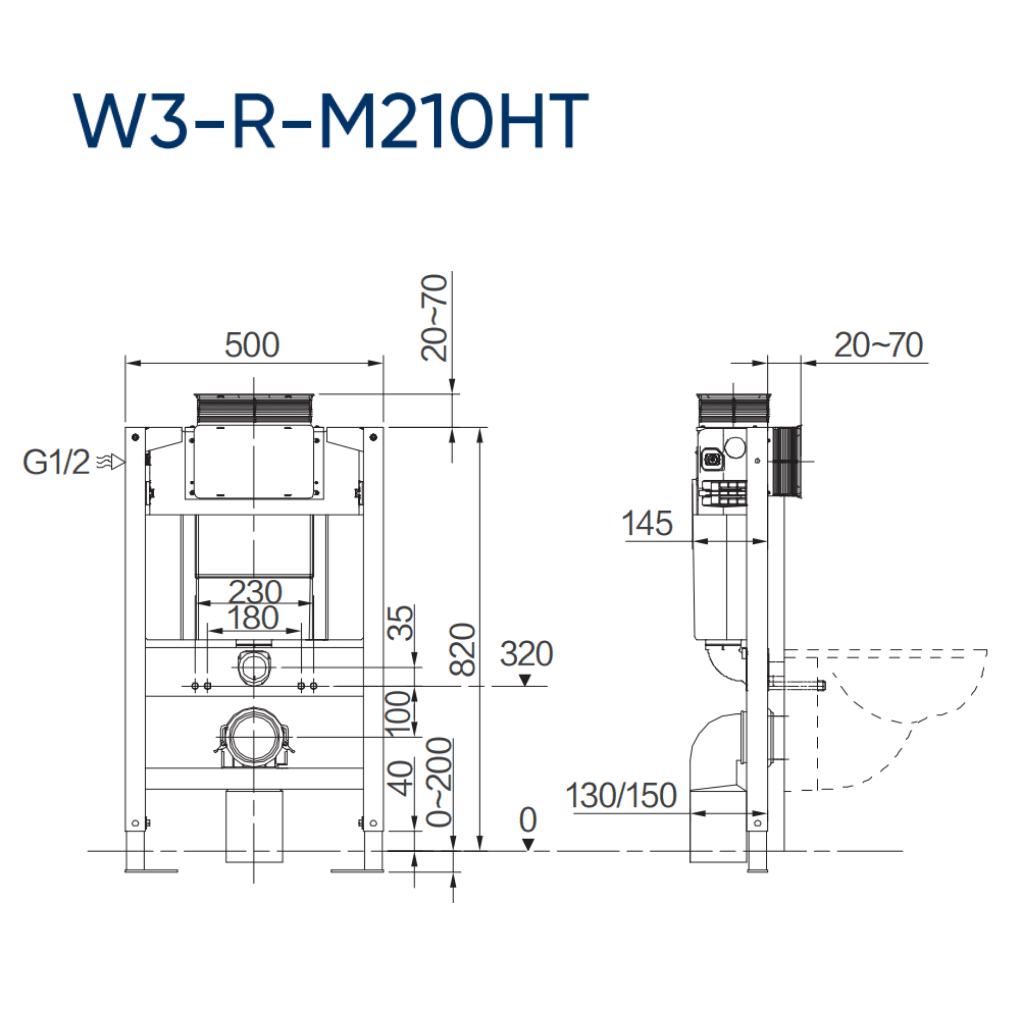

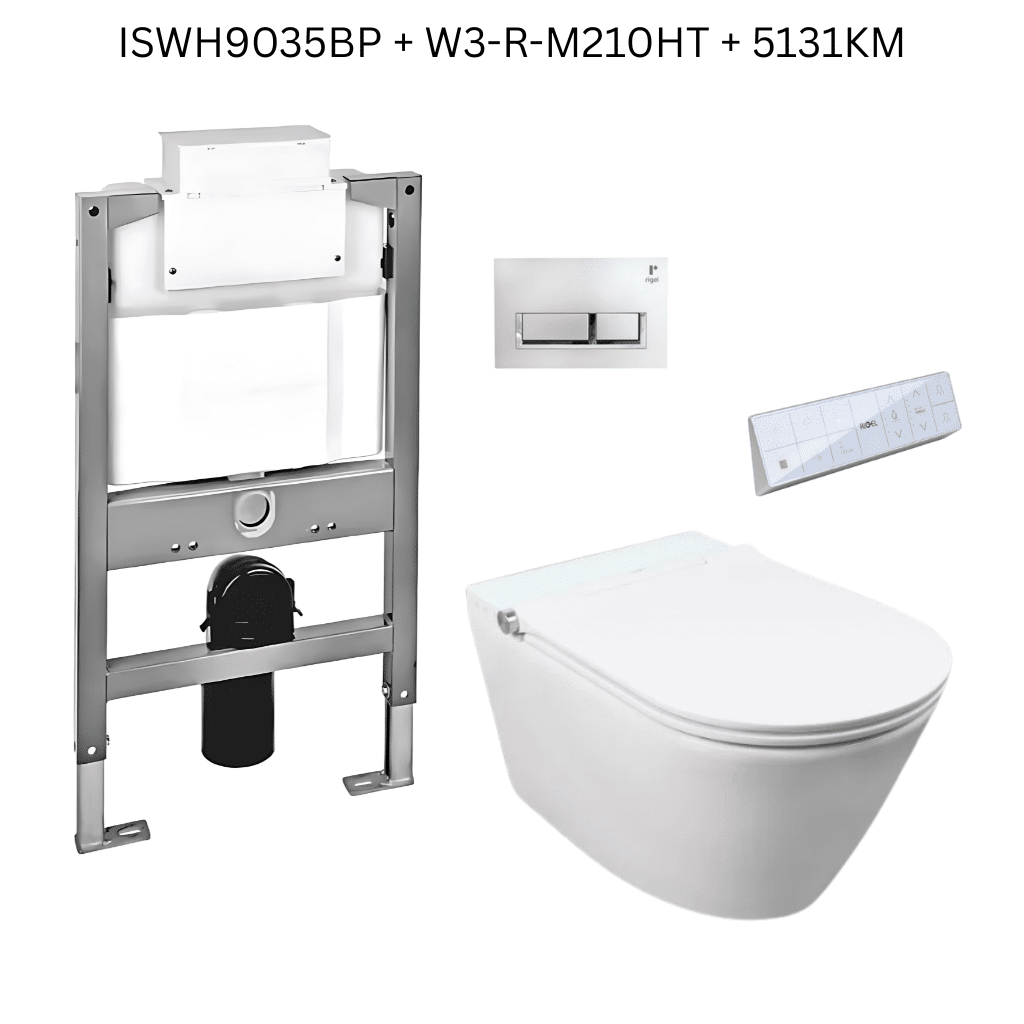

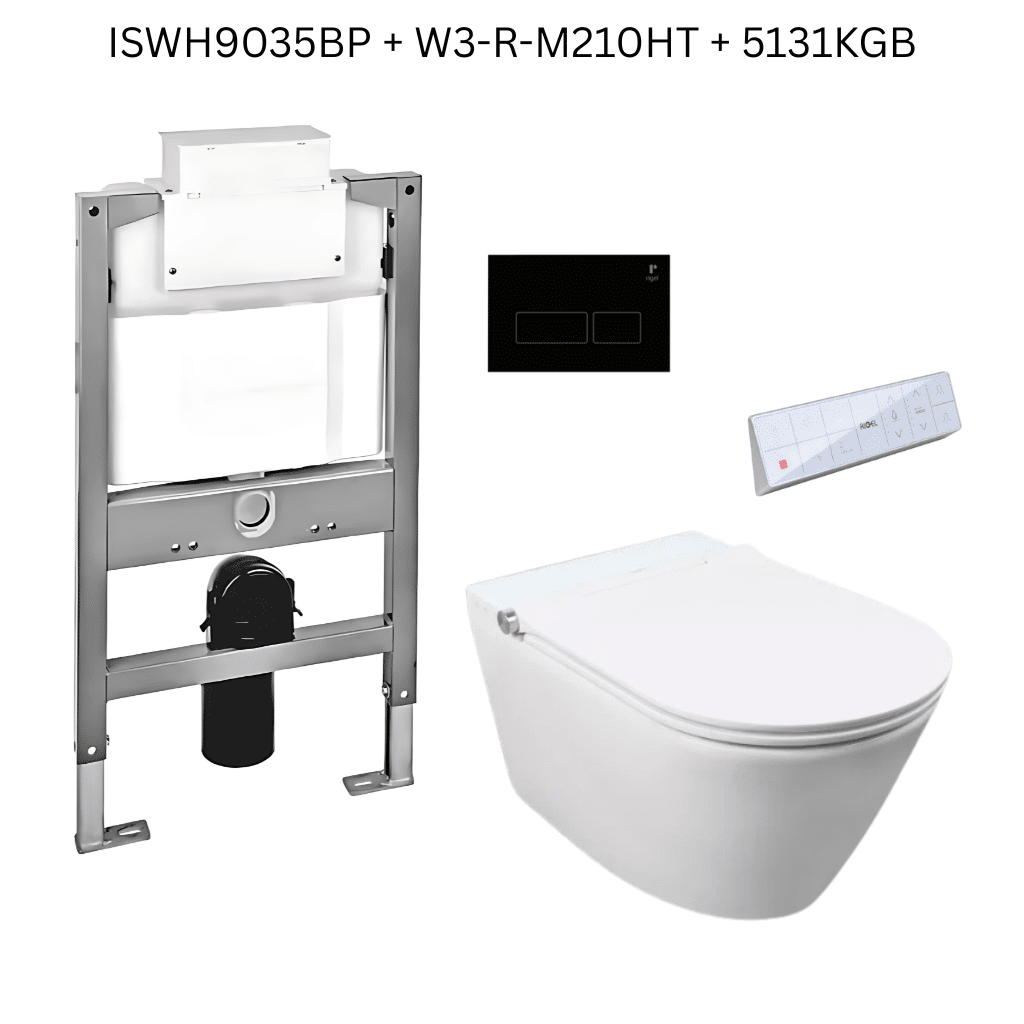

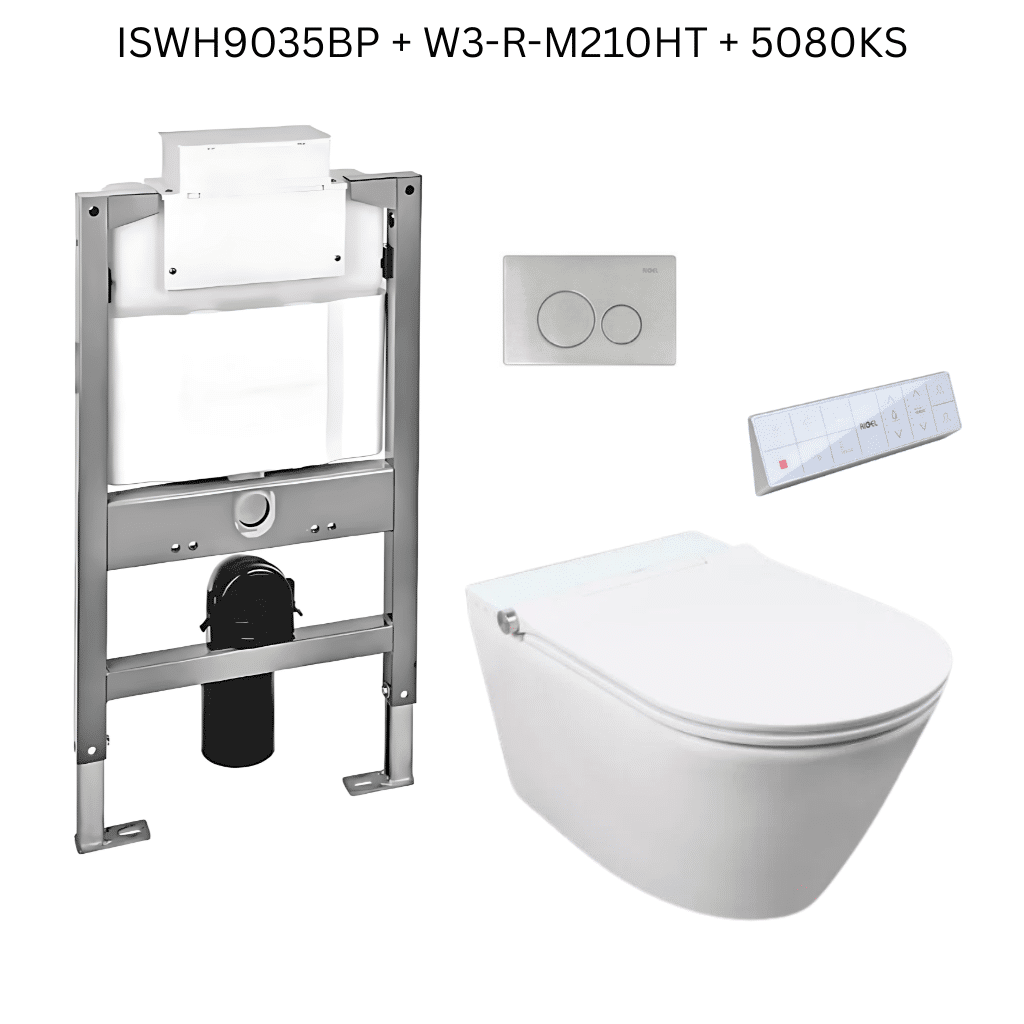

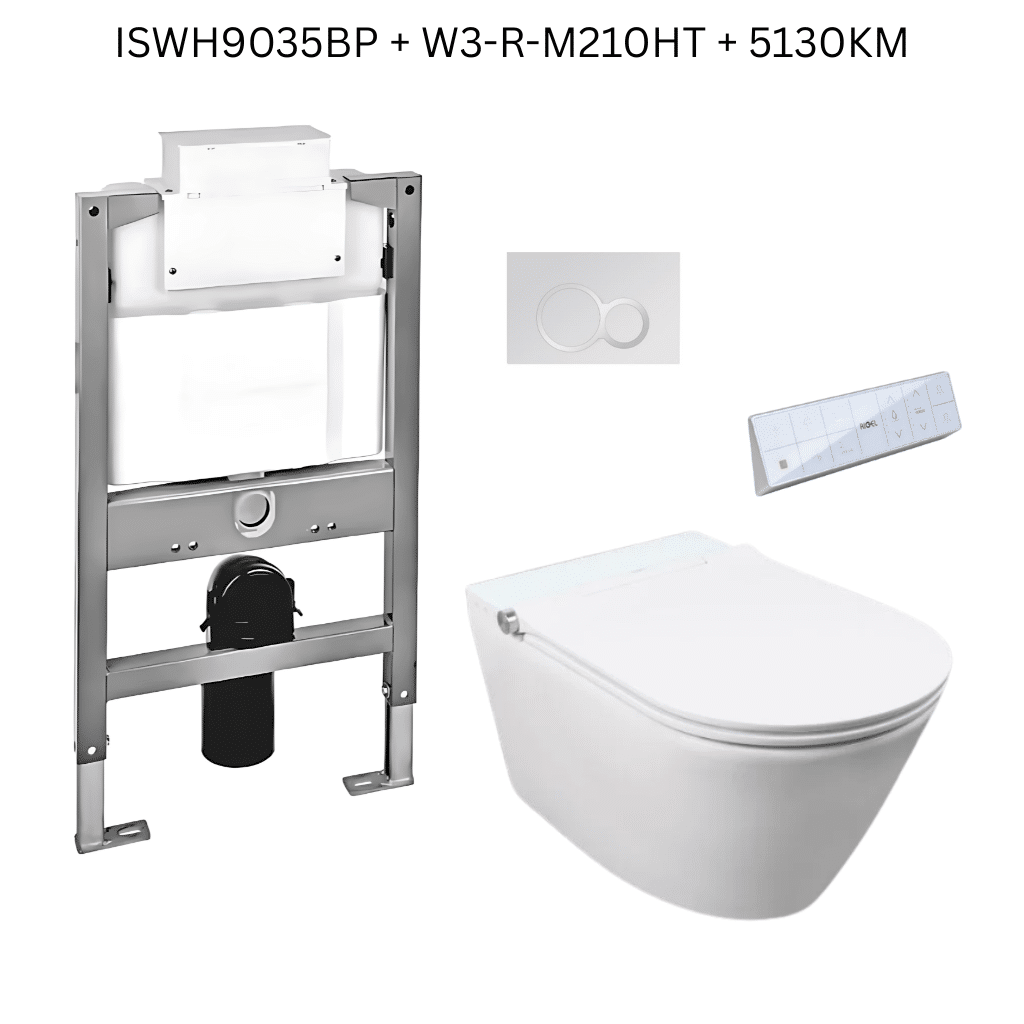

>W3-R-M210HT<

Product Features

• Top operated concealed tank
• Dry wall or solid wall installation
• Impact resistant high density polyethylene tank

Product Specification

• Dimension : 500(L) x 145(W) x 840~890(H)mm
• Fasten distance for wall-hung : 180 / 230mm
• Floor construction : 0~200mm
• Material (Cistern) : HDPE
• Material (Frame) : Q195
• Discharge volume : Nominal 3.5 litres/ flush (full)
: ≤3.0 litres/ flush (reduced)

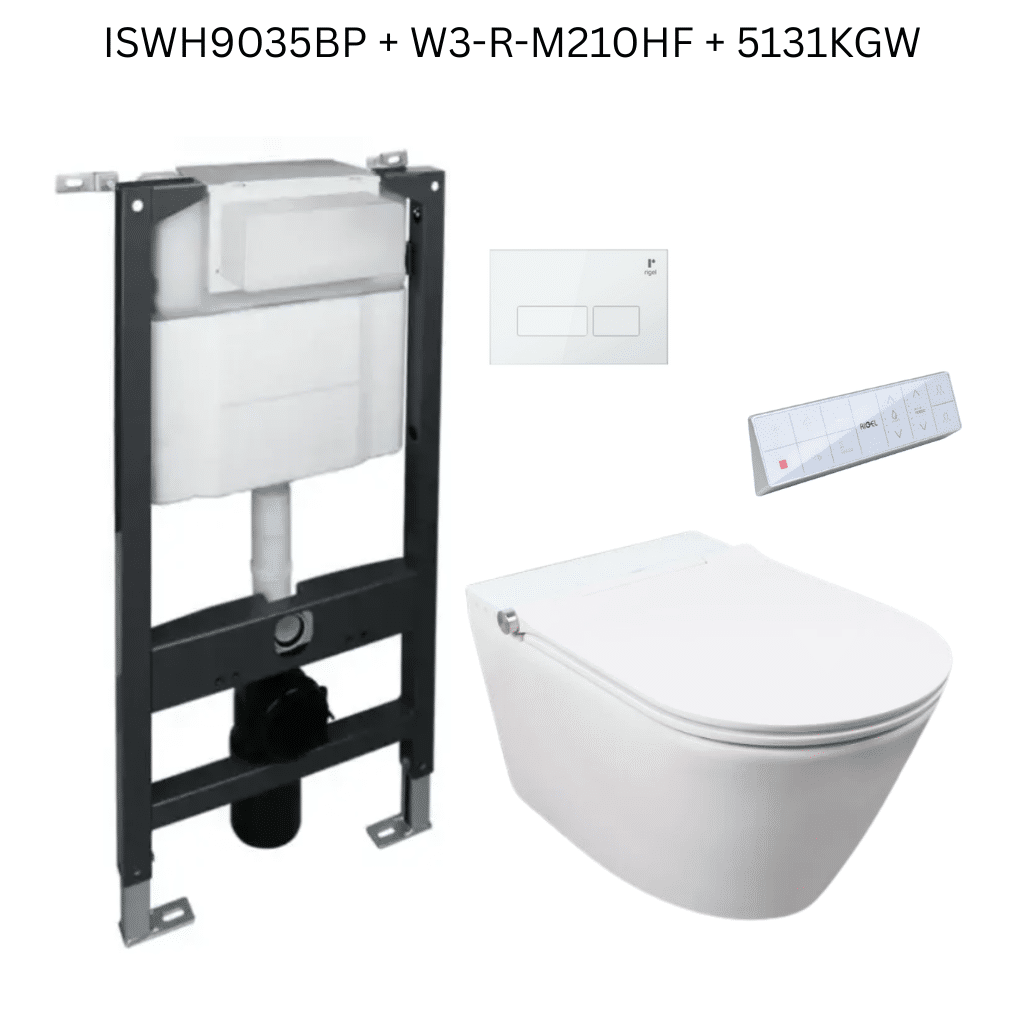

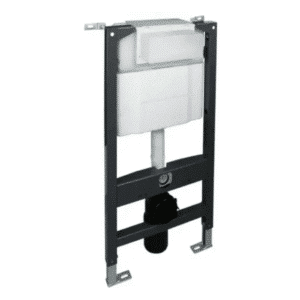

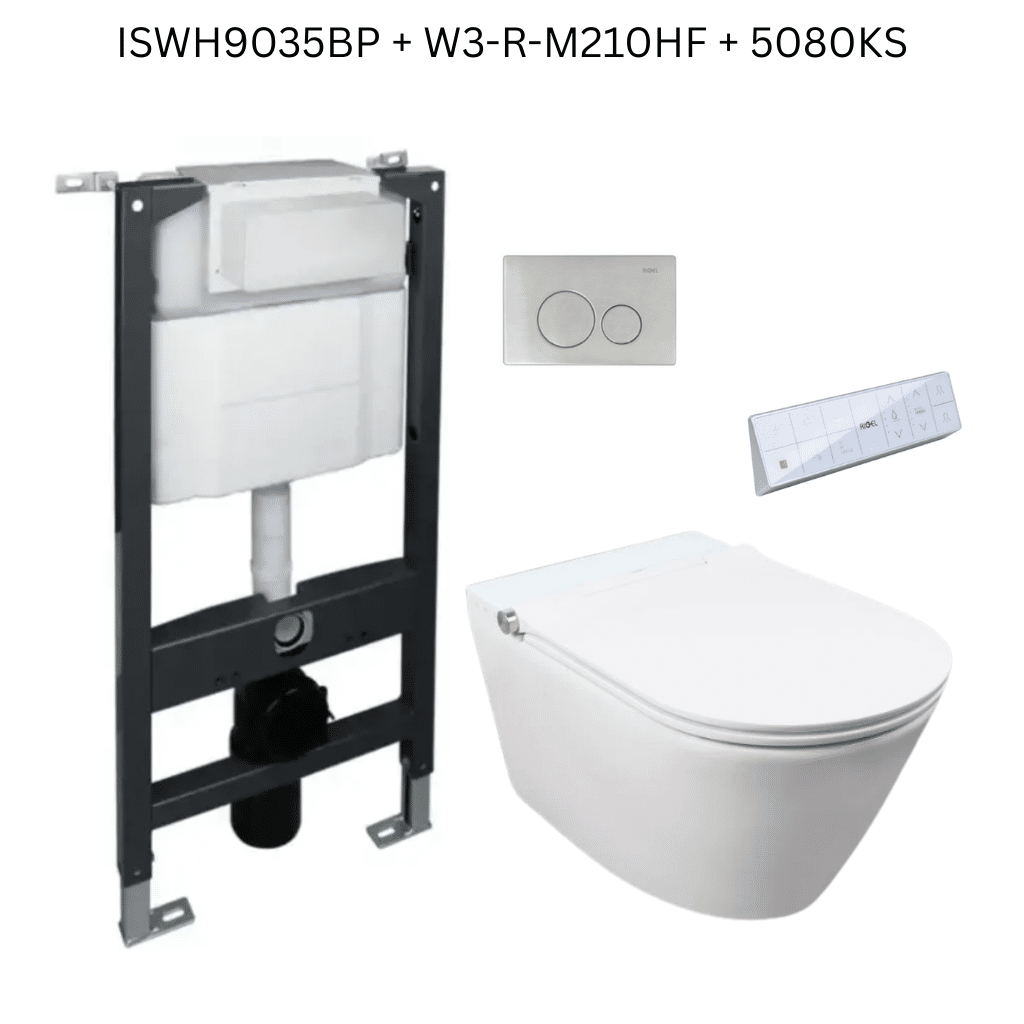

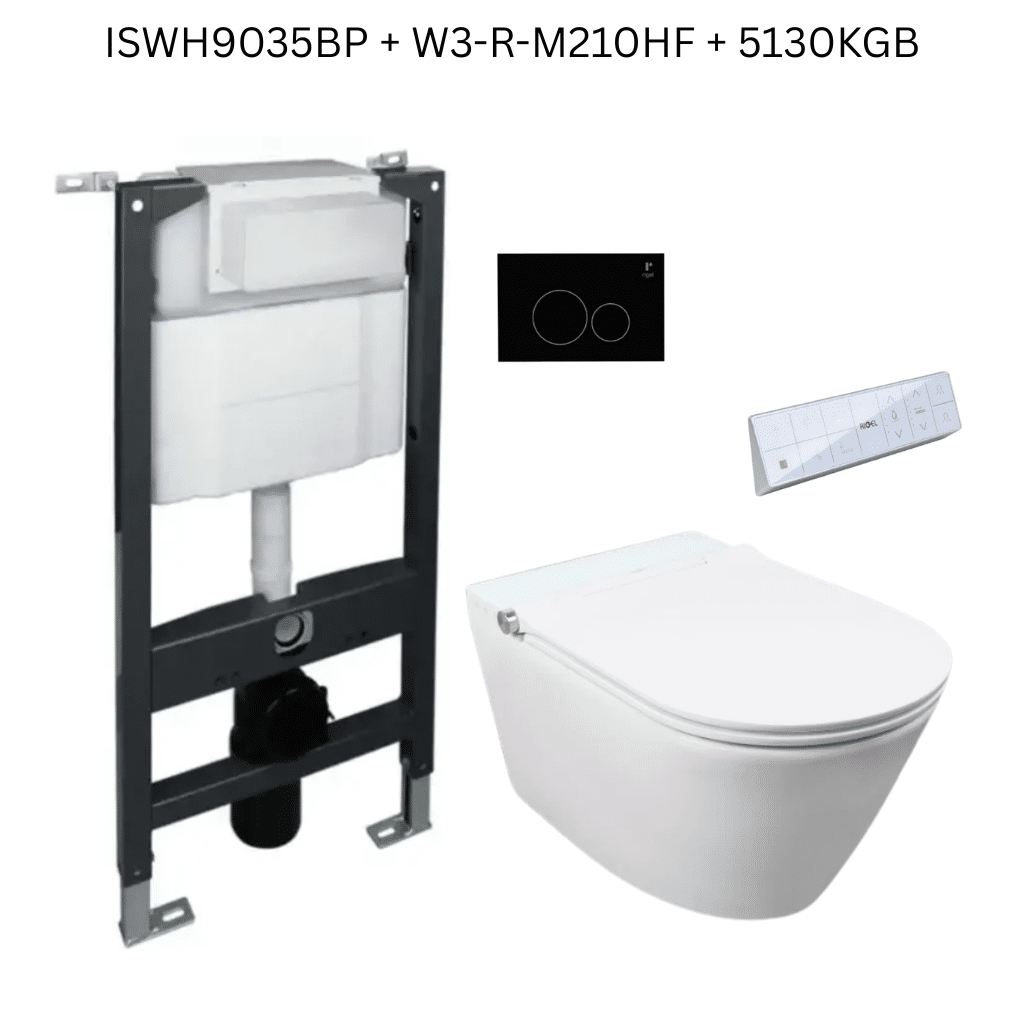

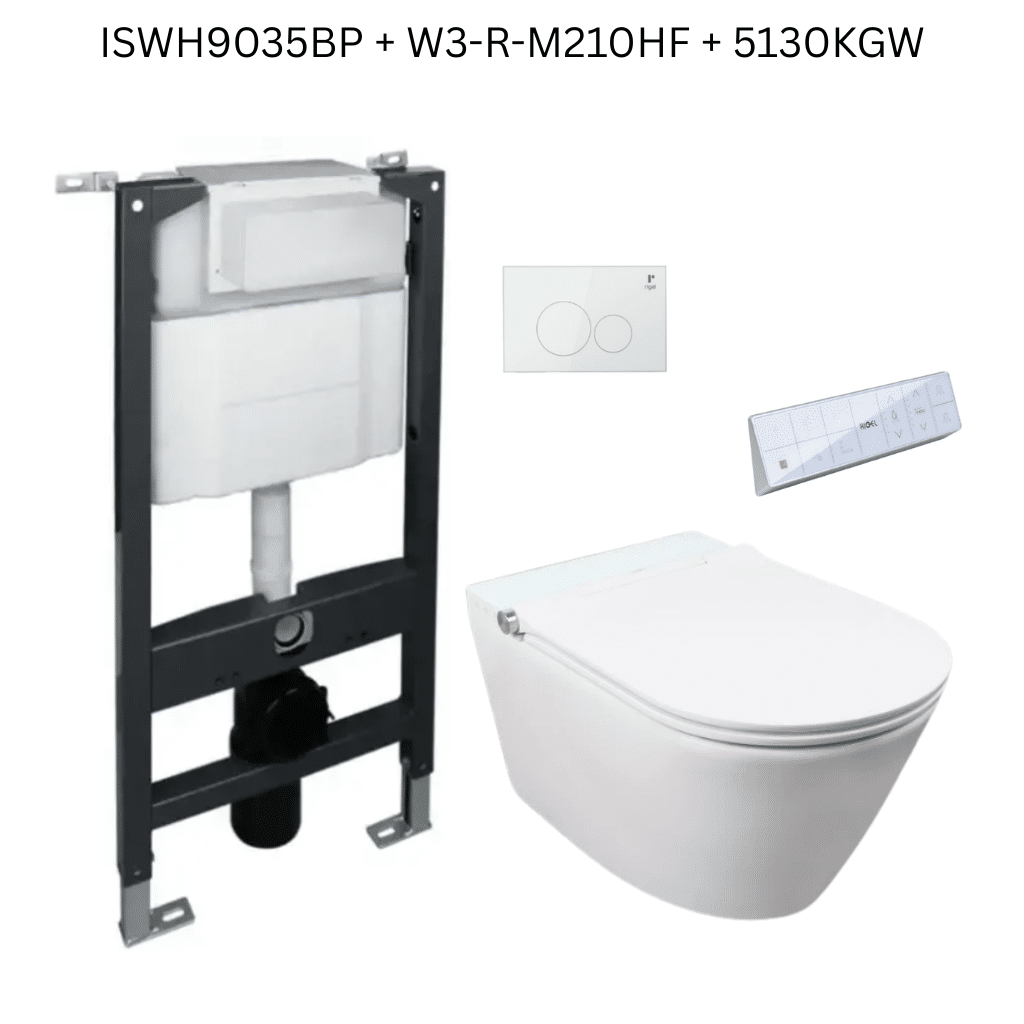

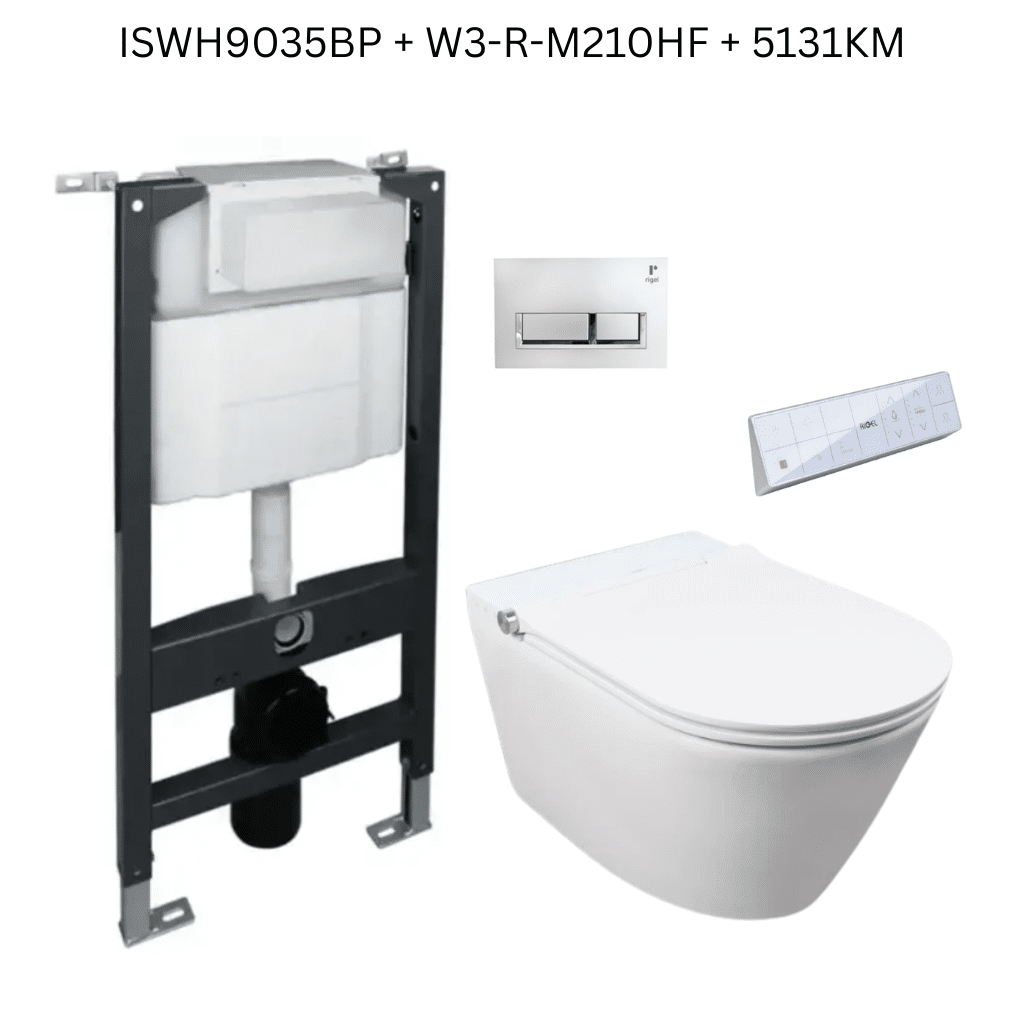

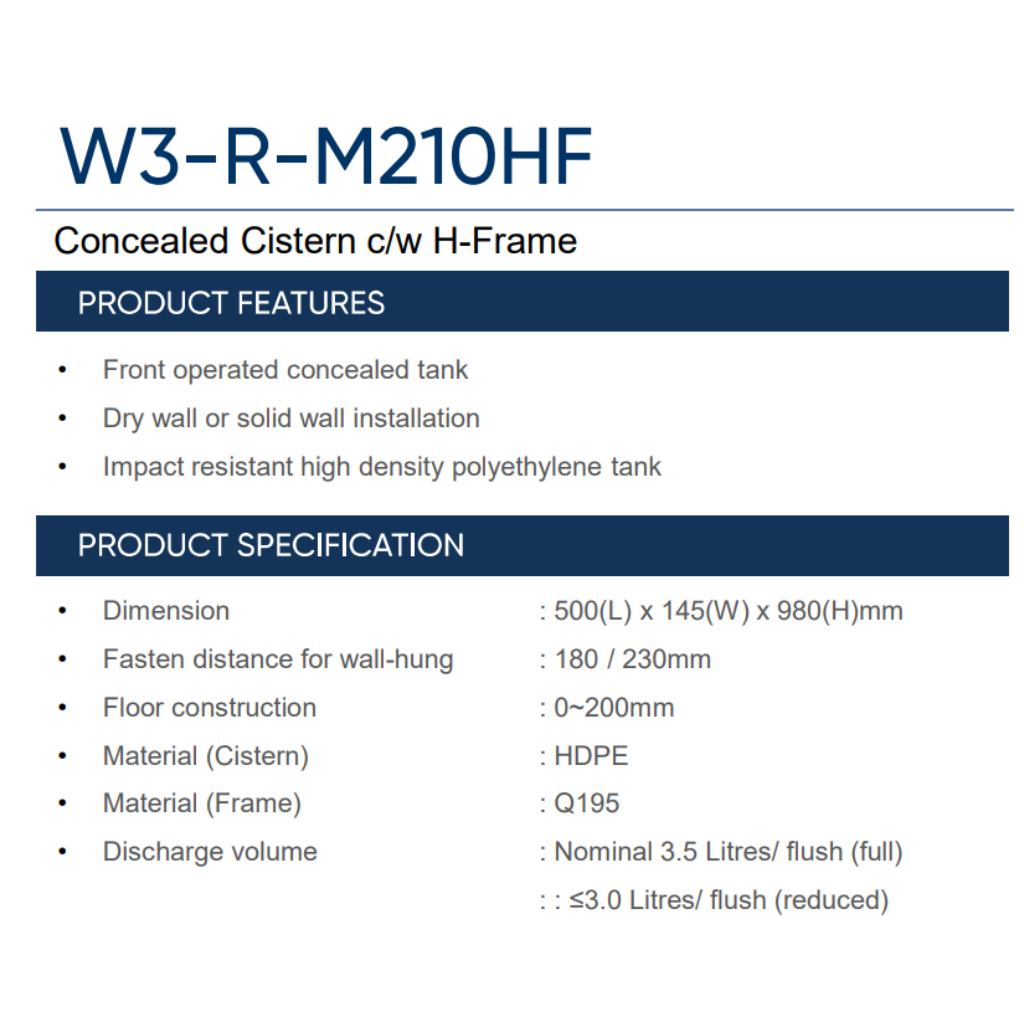

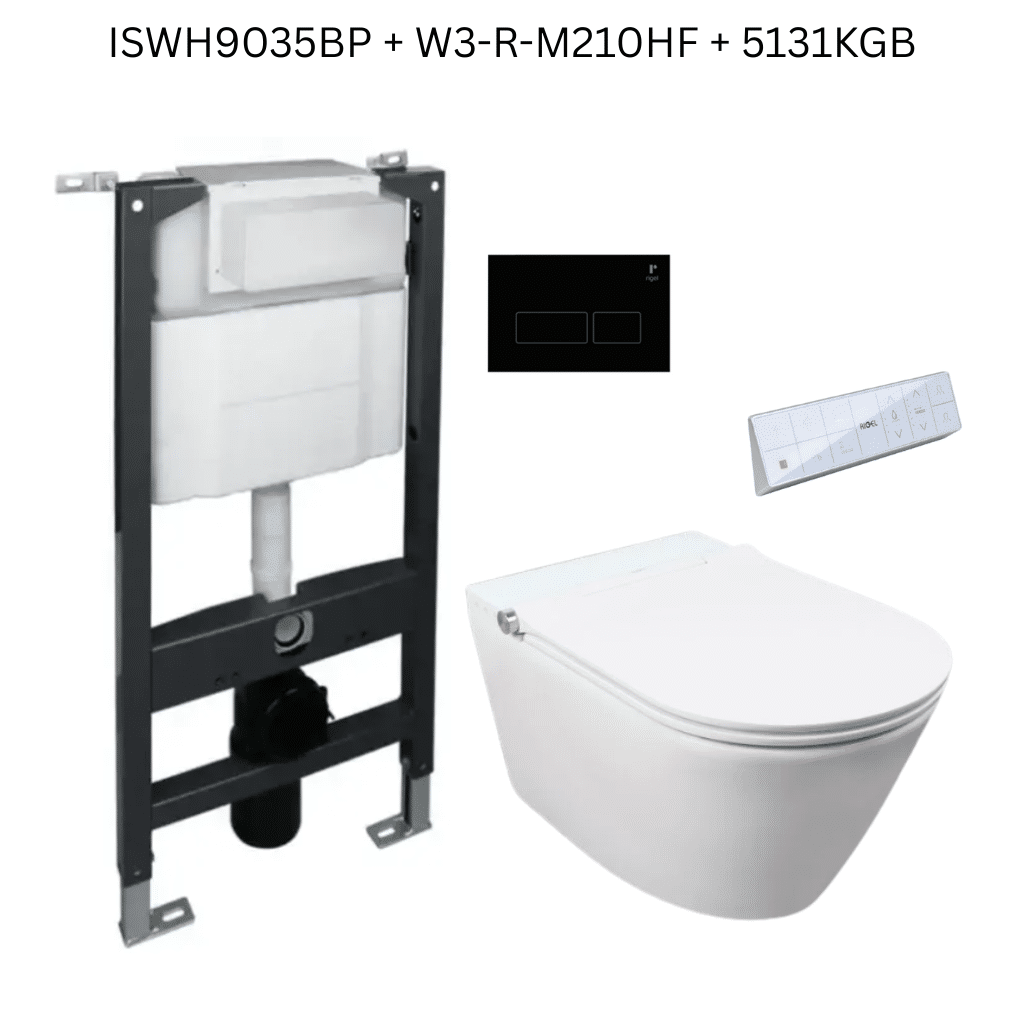

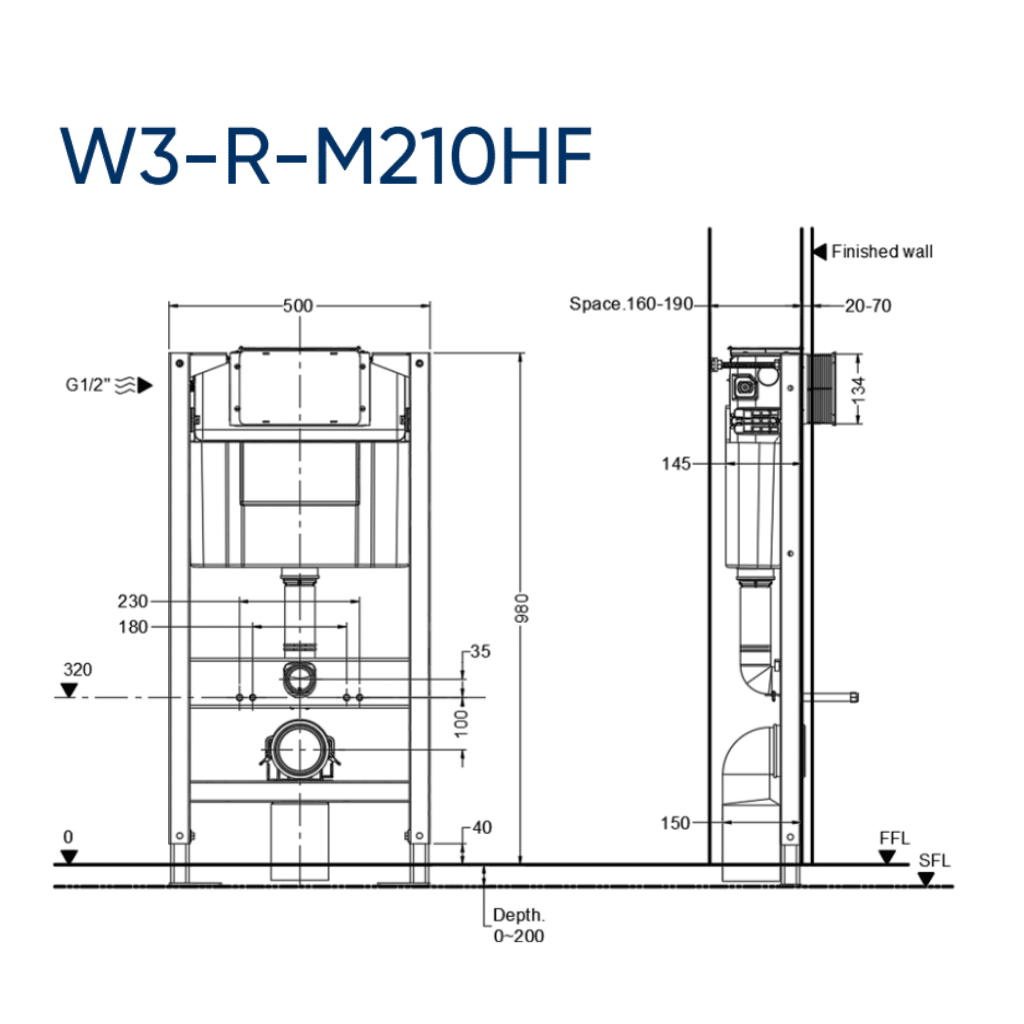

>W3-R-M210HF<

Poduct Features

• Front operated concealed tank
• Dry wall or solid wall installation
• Impact resistant high density polyethylene tank

Product Specification

• Dimension : 500(L) x 145(W) x 980(H)mm
• Fasten distance for wall-hung : 180 / 230mm
• Floor construction : 0~200mm
• Material (Cistern) : HDPE
• Material (Frame) : Q195
• Discharge volume : Nominal 3.5 Litres/ flush (full)
: : ≤3.0 Litres/ flush (reduced)

>Concealed Cistern Front Panel<
