Rigel Undermount Basin - LU3320A
Available to order
Free delivery on orders over S$200
Ask us on WhatsAppNeed help with compatibility, delivery or installation? Speak with our team before ordering.
PRODUCT INFORMATION
Product details
Features, dimensions and ordering information.
Rigel Undermount Basin - LU3320A is a deep vitreous china undercounter basin designed to sit below a stone or solid-surface countertop.
Mounting the basin below the worktop gives you a clear countertop edge for wiping. Have the installer match the cut-out and supports to the supplied basin before fabrication.
Key Features
- Undercounter / undermount installation
- High-gloss finish
- Easy-clean surface profile
- Vitreous china construction

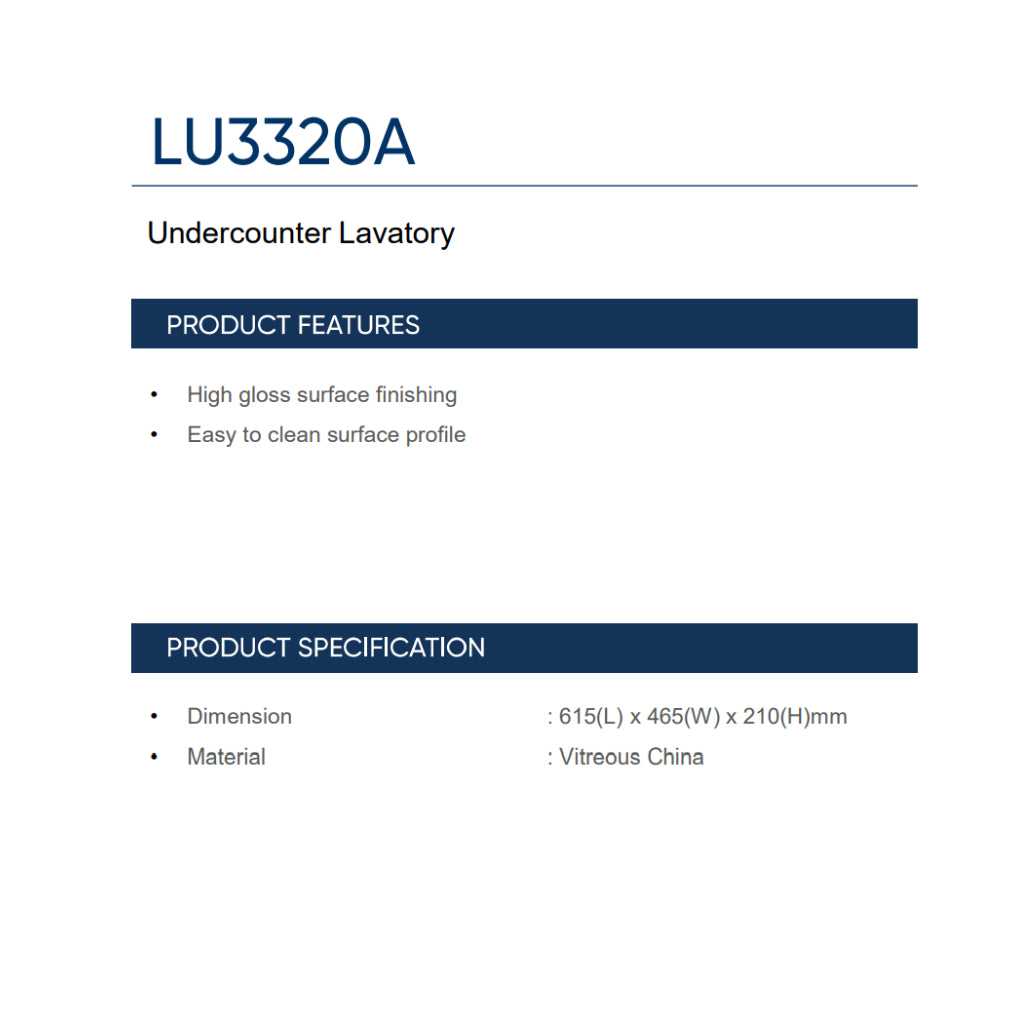

Dimensions & Technical Specifications
- Overall dimensions: 615(L) × 465(W) × 210(H) mm
- Bowl depth: approx. 165 mm

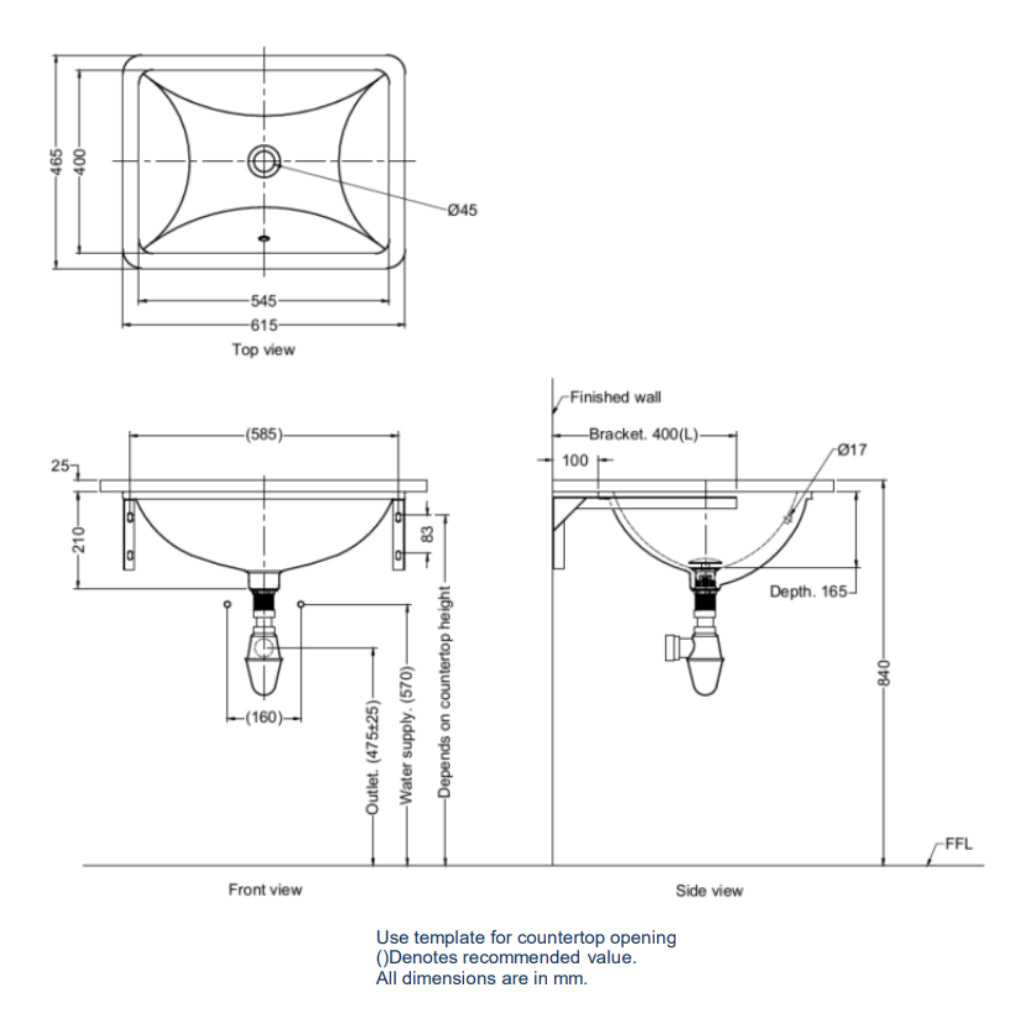

- Countertop cut-out: Use the Rigel basin template; the 585 mm reference dimension is not a confirmed cut-out size
- Material: Vitreous China
Installation & Compatibility
Undermount installation requires a compatible countertop cut-out and support brackets. Use the manufacturer's actual cut-out template before cutting stone or solid-surface material. Do not use the drawing's approximate 585 mm dimension as a cutting measurement.
Warranty Details
- Warranty Period: 1 year
- Coverage: Manufacturing and material defects
- Service: Repair or replacement of eligible defective components
- Exclusions: Misuse, accidental damage, improper installation and unauthorised repairs
Installation Charges (2026)
Wash basin installation: S$150 for wall-hung or countertop basins only.
Installation fees are charged separately. Site conditions or additional works may change the quotation; please confirm with our team before arranging installation.
Installation fees are payable directly to the installer upon installation. Final charges and additional work are subject to site confirmation.
