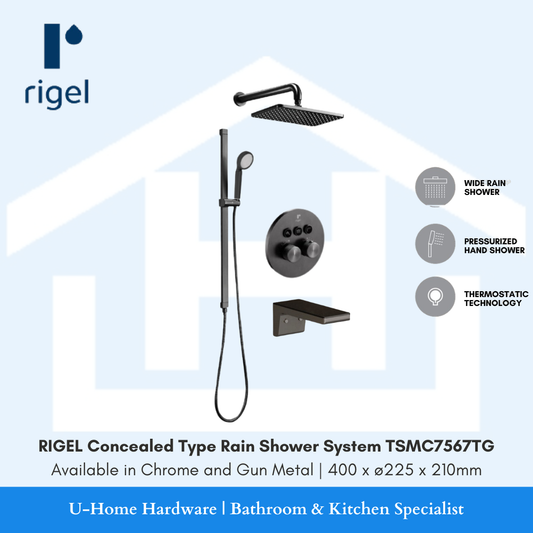

Rigel Concealed 3 Function Thermostatic Shower Set - TSMC7567TG
Available to order
Free delivery on orders over S$200
Ask us on WhatsAppNeed help with compatibility, delivery or installation? Speak with our team before ordering.
PRODUCT INFORMATION
Product details
Features, dimensions and ordering information.
Rigel Concealed 3 Function Thermostatic Shower Set - TSMC7567TG is a concealed thermostatic system with tempered-glass mixer control, bath/water spout, overhead shower, filtered hand shower and sliding rail.
The concealed controls serve an overhead shower, hand shower and water spout. Plan each outlet and use the mixer body depth when setting out the finished wall.
Component Dimensions & Technical Specifications
- Thermostatic mixer TSMC7567TG: Ø200 mm face × 140.5 mm H
- Tempered-glass water spout SPT62TG: 200(L) × 75(W) × 75(H) mm
- Overhead shower SH255: 299.8(L) × 191.8(W) × 62.2(H) mm
- Filtered hand shower W2-R-HSW930: 259(L) × 98(W) mm
- Sliding rail SHR281: 51(L) × 28(W) × 788.5(H) mm
- Hand-shower flow: 6.0 L/min
Key Features & Materials
Concealed 3-function thermostatic mixer for overhead shower, filtered hand shower and water spout. Finish depends on the selected Chrome or Gun Metal variant.
Materials
Mixer, spout, overhead shower and sliding rail use brass components; the hand shower uses ABS. Finish: Chrome or Gun Metal, depending on selected variant.
Installation & Compatibility
This is a concealed system. The mixer body and pipework must be positioned before wall finishing. Confirm internal wall depth, hot/cold supplies, outlet locations and final tile thickness before installation.
Warranty
Warranty period and covered parts are subject to Rigel’s warranty terms for this model.
Installation Charges (2026)
Rain shower installation
Additional concealed works, pipe modifications or non-standard fittings require a separate quotation.
Installation is paid directly to the installer upon installation. Final charges depend on site conditions and are confirmed before work begins.
