Samaire 3 Blades 32"/42"/52" DC Ceiling Fan (LED Optional)
Available to order
Free delivery on orders over S$200
Ask us on WhatsAppNeed help with compatibility, delivery or installation? Speak with our team before ordering.
PRODUCT INFORMATION
Product details
Features, dimensions and ordering information.
Samaire 3 Blades 32"/42"/52" DC Ceiling Fan (LED Optional). Choose blade span, finish and LED kit separately. Specifications must match the exact selection.
Dimension
Compare the dimensions for each size below. All measurements are in millimetres (mm).
| Dimension | 32" | 42" | 52" |
|---|---|---|---|
| Model | E-COS 332 | E-COM 342 | E-COL 352 |
| Blade diameter | 813 mm | 1067 mm | 1321 mm |
| Overall height — LED drawing | 319 mm | 319 mm | 319 mm |
| Ceiling canopy diameter | 155 mm | 155 mm | 155 mm |
| Light housing diameter | 157 mm | 157 mm | 157 mm |
| Mounting style | Downrod | Downrod | Downrod |
Overall height is measured from the ceiling mounting surface to the lowest point in Samaire’s illustrated LED configuration. A longer downrod changes the fitted height. For LED No, confirm the exact fitted height before installation; the illustrated LED height is not a verified non-LED measurement.

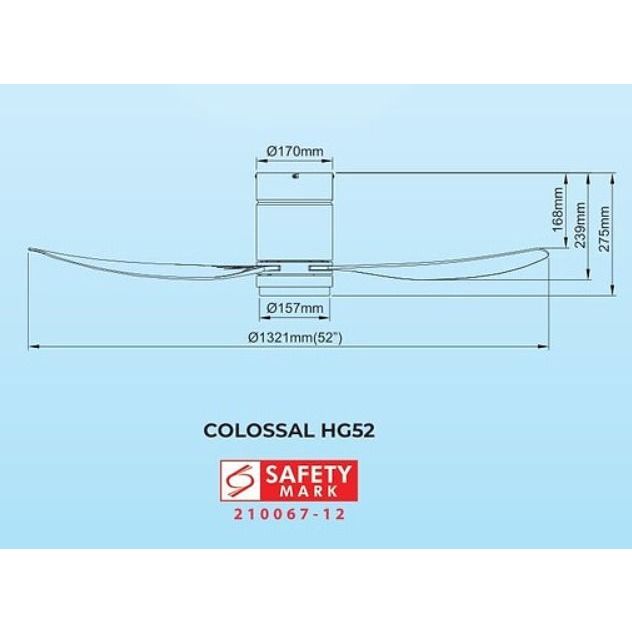

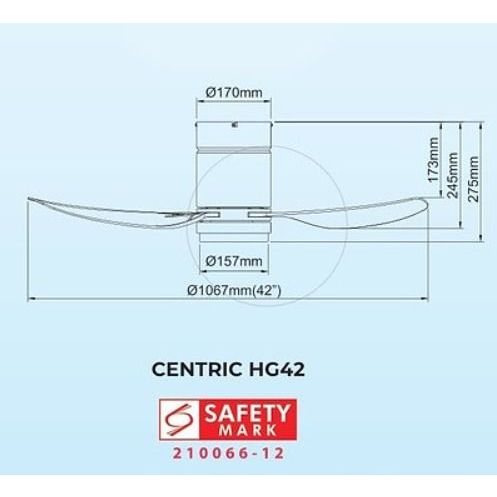

Manufacturer dimension drawings: 32" E-COS 332 · 42" E-COM 342 · 52" E-COL 352
Available finishes: Parquet, Black Parquet, White Parquet, Drift Wood, Black Drift Wood, White Drift Wood.
Light option: Select LED Yes for the light-kit option or LED No for no LED light-kit.
Variant-Specific Buying FAQ
Are the different sizes interchangeable? No; verify fan span and installation clearance for each model.
Does LED No include an OSRAM light? No. The listed wattage of the optional LED is not included in the non-LED variant.
Warranty
- DC motor Limited lifetime warranty at the original installation address.
- Internal parts 2 years, including the remote control and LED light kit where fitted.
- On-site service 2 years including labour and transport on Singapore’s main island. On-site charges apply after 2 years.
Installation Charges (2026)
Concrete ceiling · Power point ready
False ceiling · Without existing support
False ceiling · With suitable existing support
These are installation service charges with the S$80 existing-support adjustment already applied. No discount applies to the ceiling fan product price. Existing support is subject to installer assessment.
Trellis mounting
Where applicable.
Installation fees are payable directly to the installer upon installation. Final charges and additional work are subject to site confirmation.
