Rigel One-Piece Water Closet - WO8007FA

$485.00 $660.00 SGD SAVE27%

Available to order

Free delivery on orders over S$200

Model
View installation fees
Ask us on WhatsApp

Need help with compatibility, delivery or installation? Speak with our team before ordering.

2 physical showroomsTradeHub 21 · Oxley Bizhub 2
Singapore supportProduct advice & after-sales help
Installation guidanceConfirm suitability & charges

PRODUCT INFORMATION

Product details

Features, dimensions and ordering information.

Rigel One-Piece Water Closet - WO8007FA is a ZeroRim one-piece dual-flush WC designed for easier cleaning and flexible S-trap or P-trap replacement applications.

The one-piece body and rimless bowl make the areas around the cistern and bowl easier to wipe down. Select the trap option to suit your existing outlet before arranging replacement.

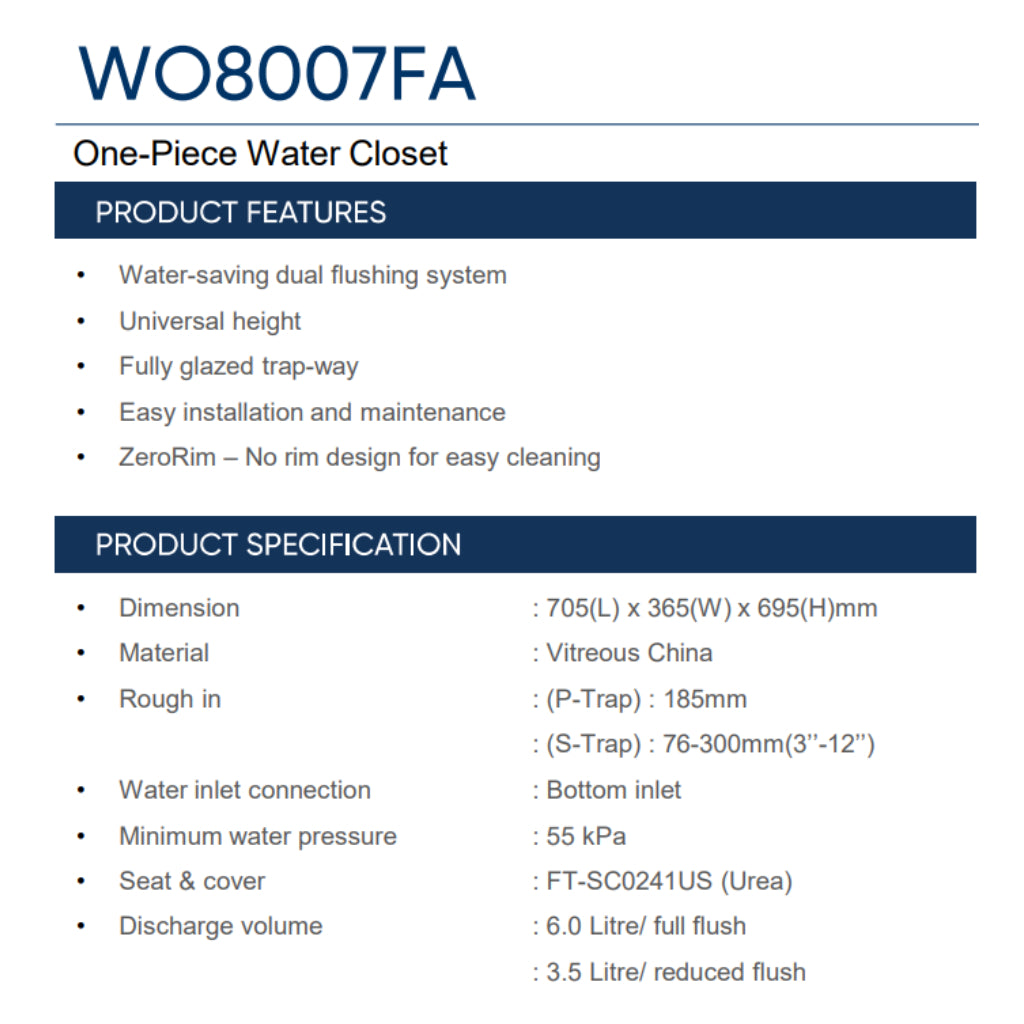

Product Specifications

  • Overall dimensions: 705(L) × 365(W) × 695(H) mm
  • Material: Vitreous China
  • P-trap rough-in: 185 mm
  • S-trap rough-in: 76–300 mm (3–12″)
  • Water inlet: Bottom side inlet, G1/2″
  • Full flush: 4.0 L
  • Reduced flush: 3.0 L
  • Seat & cover: FT-SC2086US (urea)

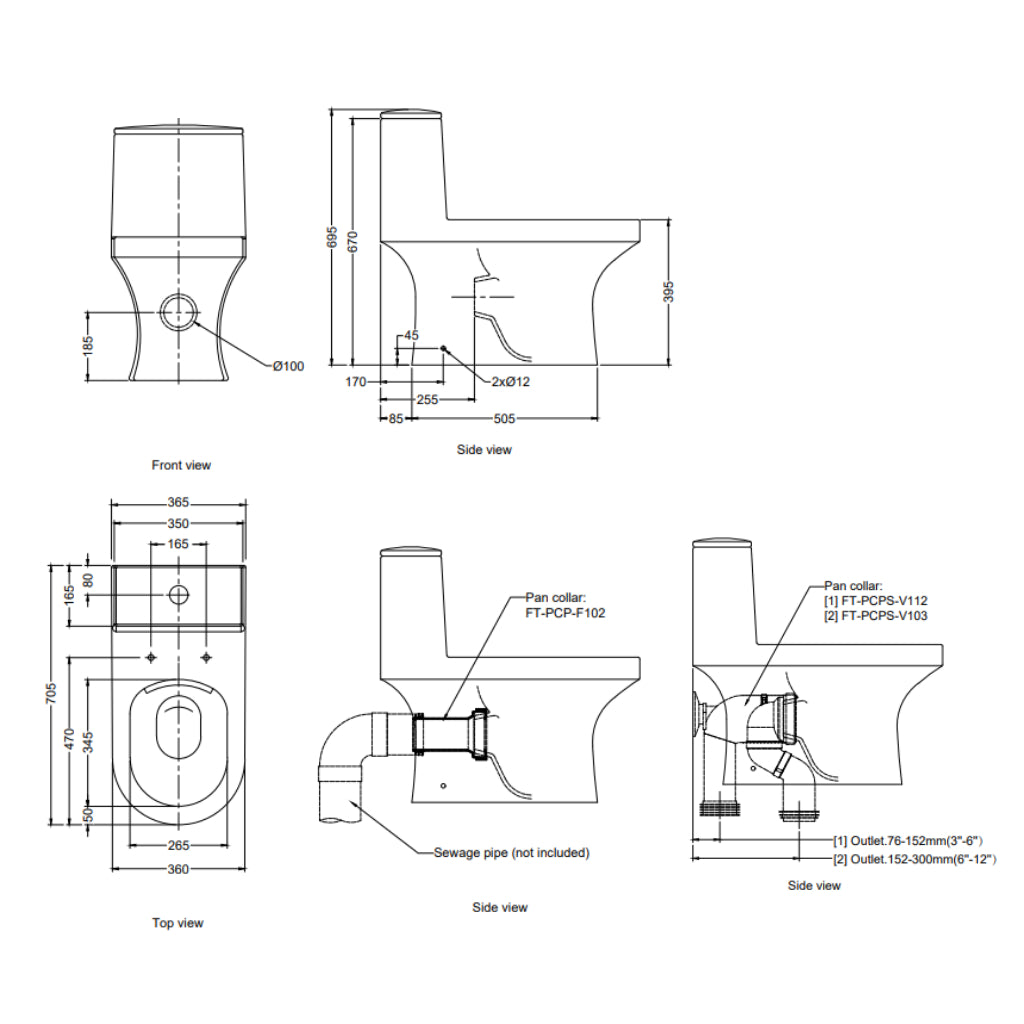

S-Trap & P-Trap Measurement Guide

Check the location and measurements of your existing waste outlet before selecting an S-Trap or P-Trap option.

S-Trap measurement: finished wall to centre of floor waste outlet
S-Trap: Measure from the finished wall to the centre of the floor outlet.
P-Trap measurement: finished floor to centre of wall waste outlet
P-Trap: Measure from the finished floor to the centre of the wall outlet.

Diagrams are illustrative. Confirm model-specific dimensions and connector suitability with your installer. View our full S-Trap vs P-Trap guide.

Measure from the finished wall to the waste-outlet centre before ordering. Confirm whether your bathroom requires S-trap or P-trap and ensure the 705 × 365 mm footprint fits the available floor space.

Rigel product specifications.

Installation Charges

Toilet bowl installation

Installation, removal of existing toilet bowl & disposalS$180 per toilet bowl

Standard replacement installation. Any non-standard site work will be assessed separately.

Installation fees are paid directly to the installer upon installation. Final charges are subject to site conditions.

Warranty Details

  • Warranty Period: 1 year
  • Coverage: Manufacturing and material defects
  • Service: Repair or replacement of eligible defective components
  • Exclusions: Misuse, improper installation, accidental damage and unauthorised repairs

Key Features

  • ZeroRim hygienic rimless design
  • Dual-flush system
  • Fully glazed trapway
  • Universal height
  • WhirlWash / washdown flushing
  • Urea seat & cover
  • Bottom side water inlet
