Rigel One-Piece Water Closet - WO8056F

$689.00 $850.00 SGD SAVE19%

Available to order

Free delivery on orders over S$200

Model
Seat Cover
View installation fees
Ask us on WhatsApp

Need help with compatibility, delivery or installation? Speak with our team before ordering.

2 physical showroomsTradeHub 21 · Oxley Bizhub 2
Singapore supportProduct advice & after-sales help
Installation guidanceConfirm suitability & charges

PRODUCT INFORMATION

Product details

Features, dimensions and ordering information.

Rigel One-Piece Water Closet - WO8056F is a ZeroRim one-piece dual-flush WC with a wide rough-in range for replacement installations.

Choose the trap configuration to match your waste outlet. If selecting a bidet bundle, confirm the seat option and its water or power requirements before installation.

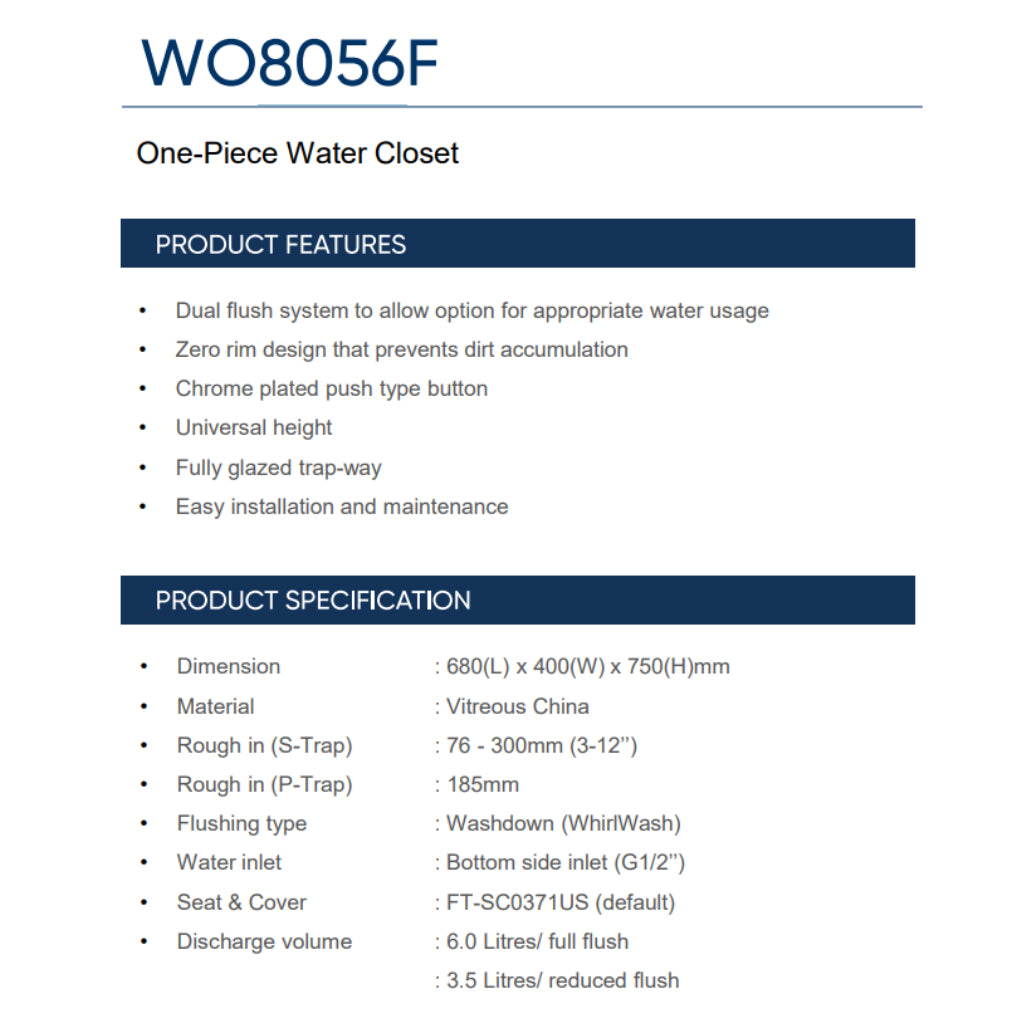

Product Specifications

  • Overall dimensions: 680(L) × 400(W) × 750(H) mm
  • Material: Vitreous China
  • S-trap rough-in: 76–300 mm (3–12″)
  • P-trap rough-in: 185 mm
  • Water inlet: Bottom side inlet, G1/2″
  • Full flush: 6.0 L
  • Reduced flush: 3.5 L
  • Seat & cover: FT-SC4062US (Rigel WO8056F technical drawing, Rev 0.3). Earlier listings specify FT-SC0371US; confirm the seat included with the supplied unit or bidet bundle.

S-Trap & P-Trap Measurement Guide

Check the location and measurements of your existing waste outlet before selecting an S-Trap or P-Trap option.

S-Trap measurement: finished wall to centre of floor waste outlet
S-Trap: Measure from the finished wall to the centre of the floor outlet.
P-Trap measurement: finished floor to centre of wall waste outlet
P-Trap: Measure from the finished floor to the centre of the wall outlet.

Diagrams are illustrative. Confirm model-specific dimensions and connector suitability with your installer. View our full S-Trap vs P-Trap guide.

Confirm trap type and exact rough-in distance before ordering. The WC requires approximately 680 × 400 mm floor space, excluding installation clearance.

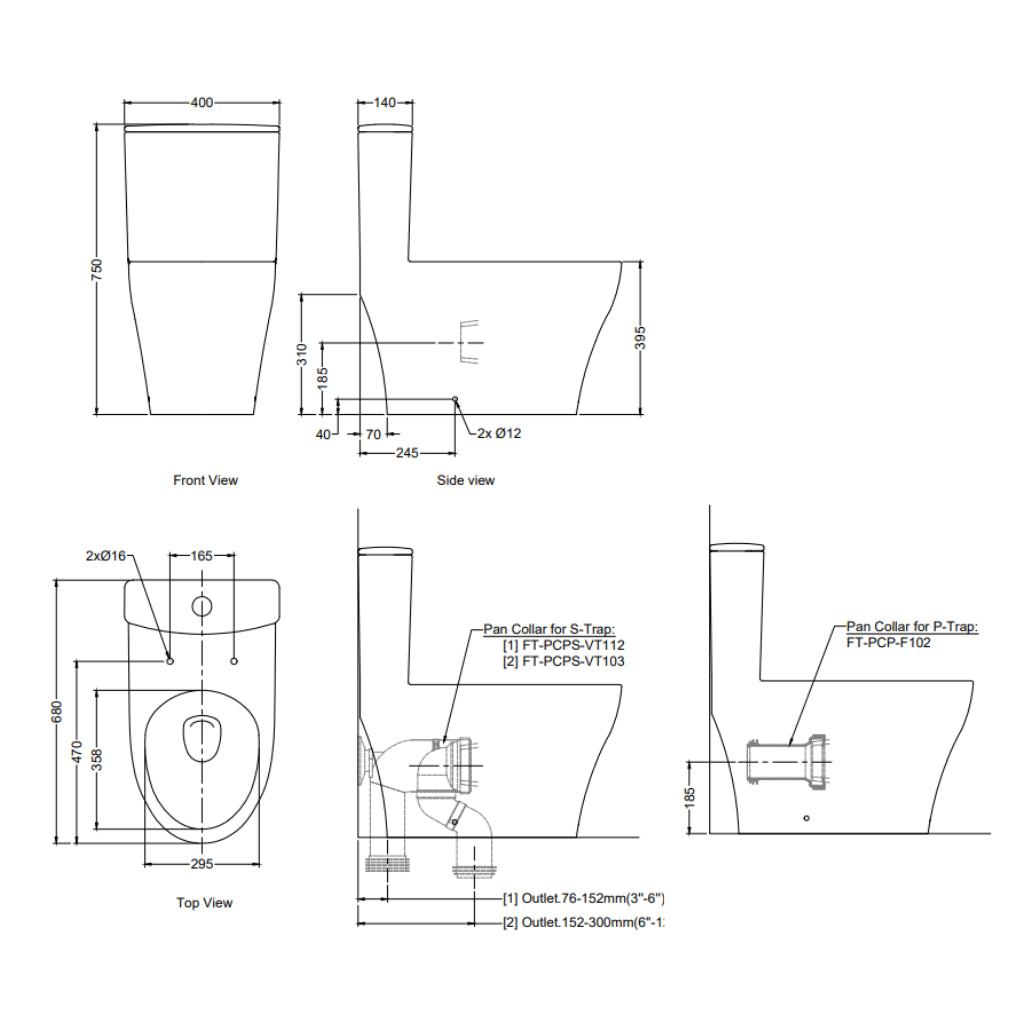

View the Rigel technical drawing

Installation Charges

Toilet bowl installation

Installation, removal of existing toilet bowl & disposalS$180 per toilet bowl

Standard replacement installation. Any non-standard site work will be assessed separately.

Installation fees are paid directly to the installer upon installation. Final charges are subject to site conditions.

Warranty Details

  • Warranty Period: 1 year
  • Coverage: Manufacturing and material defects
  • Service: Repair or replacement of eligible defective components
  • Exclusions: Misuse, improper installation, accidental damage and unauthorised repairs
  • Bidet Accessories: Separate warranty coverage applies

Key Features

  • ZeroRim design
  • Dual-flush system
  • Fully glazed trapway
  • Universal height
  • WhirlWash washdown flushing
  • Chrome-plated push button
