Rigel One Piece Water Closet - WO9030FA-HKM
Available to order
Free delivery on orders over S$200
Ask us on WhatsAppNeed help with compatibility, delivery or installation? Speak with our team before ordering.
PRODUCT INFORMATION
Product details
Features, dimensions and ordering information.
Rigel One Piece Water Closet - WO9030FA-HKM is a rimless one-piece WC with dual flushing, fully glazed trapway and universal-height design.
The one-piece rimless design is easier to wipe around the bowl and cistern. Confirm the trap option and pan collar against the existing outlet before arranging replacement.

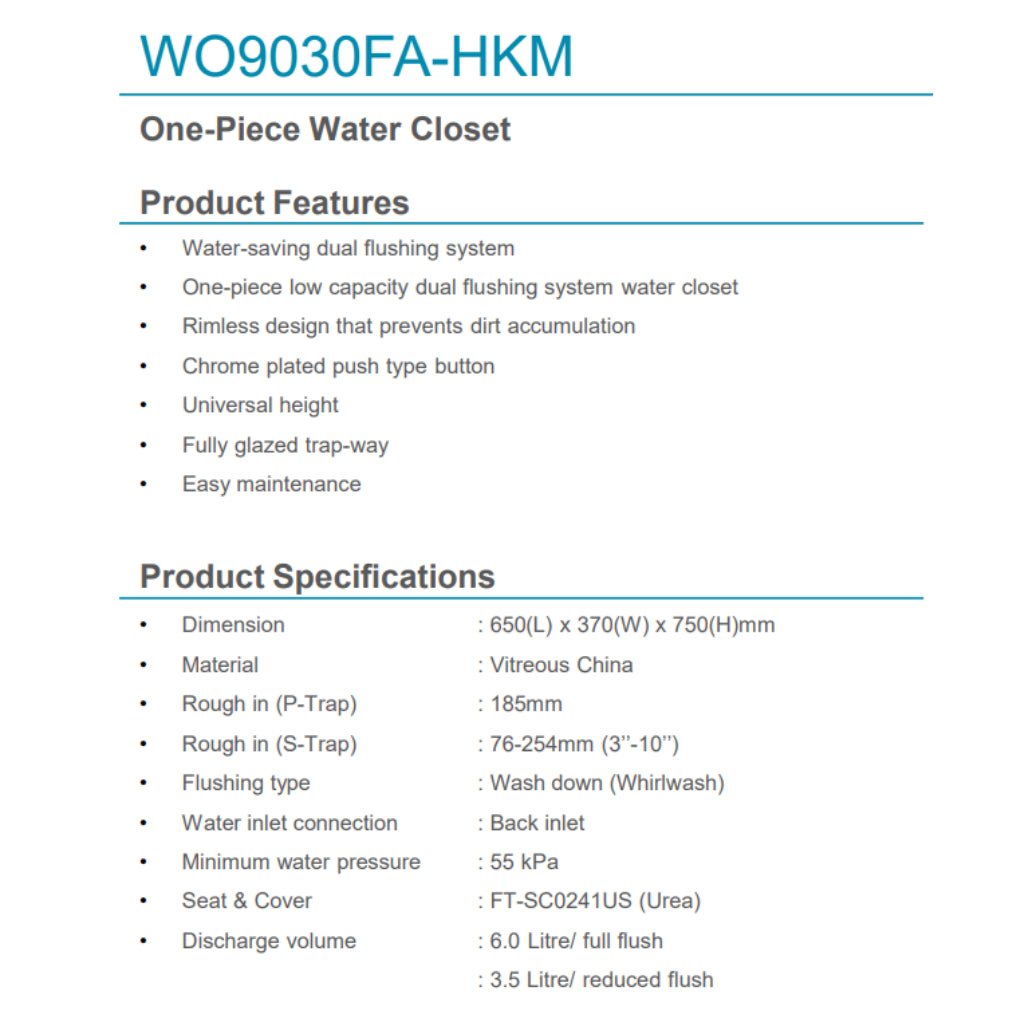

Product Specifications
- Overall dimensions: 650(L) × 370(W) × 750(H) mm
- Material: Vitreous China
- Flushing system: WhirlWash
- Water inlet: G1/2″
- Minimum inlet water pressure: 55 kPa
- Full flush: 4.5–6.0 L
- Reduced flush: 3.0 L
- Seat & cover: FT-SC2086US (urea)

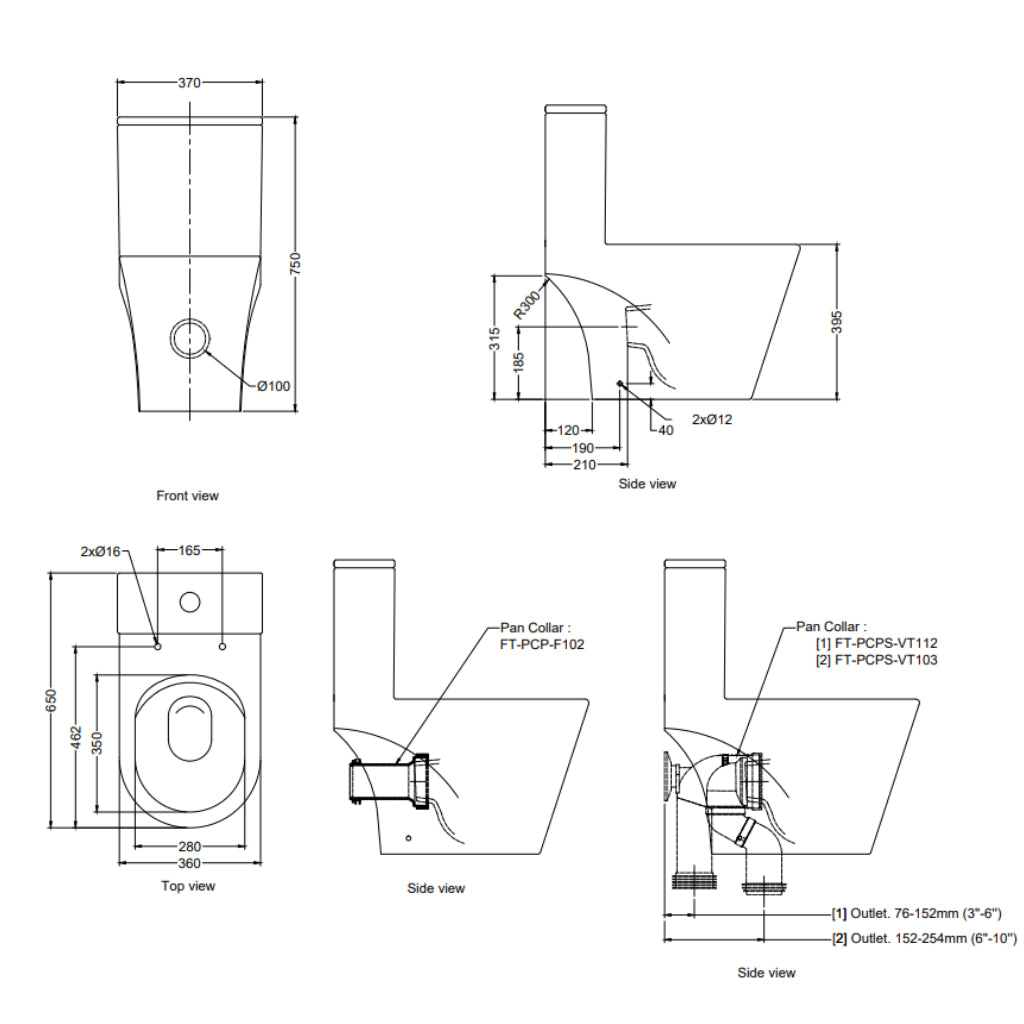

S-Trap & P-Trap Measurement Guide
Check the location and measurements of your existing waste outlet before selecting an S-Trap or P-Trap option.


Diagrams are illustrative. Confirm model-specific dimensions and connector suitability with your installer. View our full S-Trap vs P-Trap guide.
Confirm the required S-trap or P-trap configuration and measure the existing waste outlet before ordering. Site conditions and pan-collar selection affect final installation.
Installation Charges
Toilet bowl installation
Standard replacement installation. Any non-standard site work will be assessed separately.
Installation fees are paid directly to the installer upon installation. Final charges are subject to site conditions.
Warranty Details
- Warranty Period: 1 year
- Coverage: Manufacturing and material defects
- Service: Repair or replacement of eligible defective components
- Exclusions: Misuse, improper installation, accidental damage and unauthorised repairs
Key Features
- One-piece low-capacity dual-flush water closet
- Rimless design for easier cleaning
- WhirlWash flushing
- Fully glazed trapway
- Chrome-plated push button
- Urea seat & cover
